7025BG

Heat Sinks TO-220

product image

7025BG Picture
See larger image
SeekIC No. : 002533930 Detail

7025BG: Heat Sinks TO-220

7025BG Data Sheet

floor Price/Ceiling Price

US $ .36~.36 / Piece | Get Latest Price
Part Number:
7025BG
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~8750
  • Unit Price
  • $.36
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Through Hole
Heatsink Material : Aluminum Fin Style : Folded Back
Length : 24.13 mm Width : 48.26 mm
Height : 28.7 mm Designed for : TO-220

Description

Thermal Resistance :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Designed for : TO-220
Fin Style : Folded Back
Length : 24.13 mm
Width : 48.26 mm
Height : 28.7 mm


Pinout

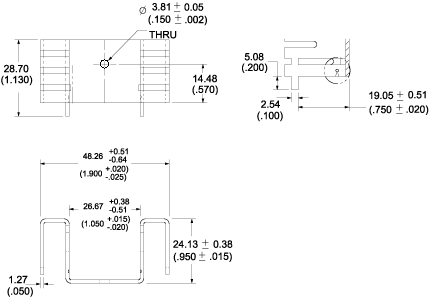

Connection Diagram


Specifications

Part # Description Finish Board Mounting
7025BG Channel style heat sink with folded back fins Black Anodize N/A



Description

Thermal Resistance 6.80

Thermal resistance value is based on a 75C rise in natural convection 7025BG


Parameters:

Technical/Catalog Information7025BG
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On and PC Pin
Height1.13" (28.7mm)
MaterialAluminum
Package CooledTO-220
Power Dissipation @ Temperature Rise6W @ 50°C
Thermal Resistance @ Forced Air Flow4°C/W @ 300 LFM
Outline48.26mm x 24.13mm
Thermal Resistance @ Natural6.8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 7025BG
7025BG
