7024B-MTG: Heat Sinks TO-220 VERT MOUNT

7024B-MTG Data Sheet

US $ .46~.46 / Piece | Get Latest Price

Part Number:: 7024B-MTG
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~4680

Unit Price
$.46

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

7024 evaluate
US $2.51 - 3.07 / Piece

Power Inductors 1000uH 15%
7024 BK001 evaluate
US $223.64 - 248.98 / Piece

Wire - Single Conductor 22AWG 19/34 XLPE 1000ft SPOOL BLACK
7024 RD001 evaluate
US $223.64 - 248.98 / Piece

Wire - Single Conductor 22AWG 19/34 XLPE 1000ft SPOOL RED

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Aluminum	Fin Style :	Folded
Thermal Resistance :	5.6 C / W	Length :	19.05 mm
Width :	50.8 mm	Height :	41.15 mm
Designed for :	TO-220

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Designed for : TO-220
Length : 19.05 mm
Fin Style : Folded
Width : 50.8 mm
Height : 41.15 mm
Thermal Resistance : 5.6 C / W

Pinout

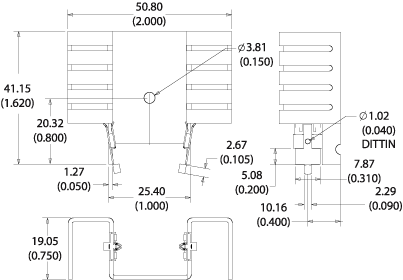

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
7024B-MTG	Channel style heat sink with folded back fins and solderable mounting tabs	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

5.60

7024B-MTG
Thermal resistance value is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	7024B-MTG
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	1.62" (41.15mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	9W @ 60°C
Thermal Resistance @ Forced Air Flow	4.0°C/W @ 200 LFM
Outline	50.80mm x 19.05mm
Thermal Resistance @ Natural	5.6°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7024B MTG 7024BMTG
