7011X1/17

Standard LED - SMD RED/YLW WTR CLR

product image

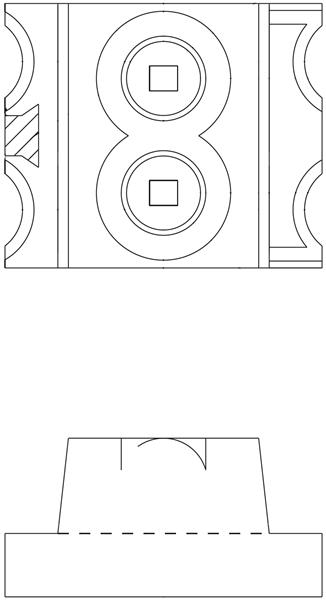

7011X1/17 Picture
See larger image
SeekIC No. : 0051531 Detail

7011X1/17: Standard LED - SMD RED/YLW WTR CLR

7011X1/17 Data Sheet

floor Price/Ceiling Price

US $ .29~.29 / Piece | Get Latest Price
Part Number:
7011X1/17
Mfg:
Chicago Miniature
Supply Ability:
5000

Price Break

  • Qty
  • 0~1350
  • 1350~2500
  • Unit Price
  • $.29
  • $.29
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

LED Size : 3 mm x 2.5 mm Illumination Color : Red, Yellow
Wavelength/Color Temperature : 660 nm, 580 nm Luminous Intensity : 6 mcd to 17 mcd, 3 mcd to 6 mcd
Viewing Angle : 100 deg Packaging : Reel

Description

Lens Color/Style :
Forward Current :
Forward Voltage :
Packaging : Reel
LED Size : 3 mm x 2.5 mm
Viewing Angle : 100 deg
Illumination Color : Red, Yellow
Wavelength/Color Temperature : 660 nm, 580 nm
Luminous Intensity : 6 mcd to 17 mcd, 3 mcd to 6 mcd


Pinout




Specifications

Part Number: 7011X1/17
Serial Number: 7011X
LED Type: SMT
Industry Size: 1210
Metric Size: 3.0 x 2.5 x 1.1 mm
Output Color: RED/YELLOW
Epoxy: CLEAR NON-DIFFUSED
Peak Wave length (mA): 660580
Minimum MCD: 6.0/3.0
Typical MCD: All
Forward Volt (Typical): 1.75/2.2
Forward Volt (Max): 2.0/2.5
Rate Current (mA): 20
Viewing Angle (°): 100
Operating Temperature: -0.352941176
Storage Temperature: -0.333333333
Power Dissipation: 60/75
Cont Forward Current Max: 30
RoHS Status: Yes
