7010X7, US $ .16-.29 , Chicago Miniature, 7010X7 DataSheet download, circuit diagram from SeekIC.com

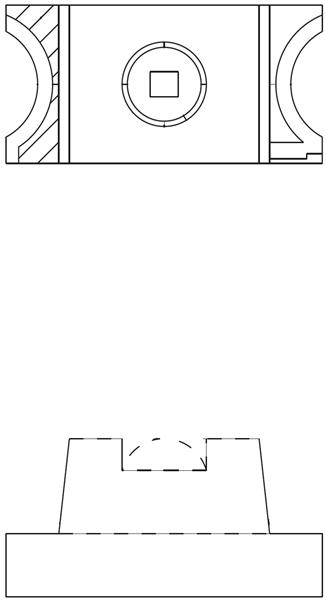

See larger image

SeekIC No. : 0048523 Detail

7010X7: Standard LED - SMD YELLOW WATER CLEAR

7010X7 Data Sheet

US $ .16~.29 / Piece | Get Latest Price

Part Number:: 7010X7
Mfg:: Chicago Miniature
Supply Ability:: 5000

Price Break

Qty
0~1
1~100
100~500
500~1000

Unit Price
$.29
$.22
$.18
$.16

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

7010 evaluate
Power Inductors 250uH 15%
7010.1780.12 evaluate
US $2.05 - 2.05 / Piece

Fuses SUBMINIATURE FUSE 125MA
7010.222 evaluate
US $2.86 - 2.86 / Piece

Fuses FUSE DO 4,7X16 F 125V 0,5A

Product Details

Quick Details

LED Size :	3 mm x 1.5 mm	Illumination Color :	Yellow
Wavelength/Color Temperature :	570 nm	Lens Color/Style :	Transparent
Luminous Intensity :	12 mcd	Viewing Angle :	70 deg
Packaging :	Reel

Description

Forward Current :
Forward Voltage :
Packaging : Reel
Illumination Color : Yellow
Wavelength/Color Temperature : 570 nm
Luminous Intensity : 12 mcd
LED Size : 3 mm x 1.5 mm
Viewing Angle : 70 deg
Lens Color/Style : Transparent

Pinout

Specifications

Part Number: 7010X7
Serial Number: 7010X
LED Type: SMT
Industry Size: 1206
Metric Size: 3.0 x 1.5 x 1.5 mm
Output Color: YELLOW
Epoxy: CLEAR NON-DIFFUSED
Peak Wave length (mA): 570
Minimum MCD: 6
Typical MCD: 12
Forward Volt (Typical): 2.1
Forward Volt (Max): 2.5
Rate Current (mA): 20
Viewing Angle (°): 70
Operating Temperature: -0.352941176
Storage Temperature: -0.4
Power Dissipation: 75
Cont Forward Current Max: 30
RoHS Status: Yes

Parameters:

Technical/Catalog Information	7010X7
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Yellow
Lens Style/Size	Rectangle, 2mm x 1.5mm
Millicandela Rating	12mcd
Voltage - Forward (Vf) Typ	2.1V
Wavelength - Dominant	570nm
Wavelength - Peak	570nm
Current - Test	20mA
Viewing Angle	70°
Lens Type	Clear
Luminous Flux	14 mlm
Package / Case	1206 (3216 metric)
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7010X7 7010X7 L61007TR ND L61007TRND L61007TR
