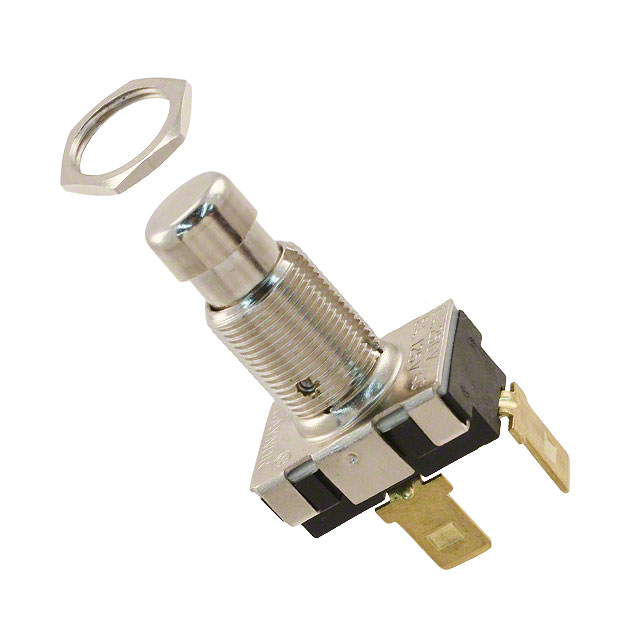

7004C

Type: Standard
Illumination Type, Color: -
Illumination Voltage (Nominal): -
Ingress Protection: -
Features: -
Panel Cutout Dimensions: -
Packaging: Bulk
Voltage Rating - AC: 125V
Voltage Rating - DC: -
Actuator Type: Round, Button
Mounting Type: Panel Mount, Rear
Circuit: SPST
Termination Style: Quick Connect - 0.250" (6.3mm)
Switch Function: On-Off
Series: 7000
Color - Actuator/Cap: Silver
Manufacturer: Electroswitch
Current Rating: 15A (AC)


Features:

Accepts POTS lines & Coaxial Protector
Manufactured from high-impact resistant, ultraviolet-desensitized, flame retardant, UL Recognized plastic
Optional sealed switching jacks with Insulation Displacement Connectors (IDCs)
Subscriber lockable with Telco override
Convenient ground attachment
Listed per UL 497 (File: E53117)


Description

Bourns® Model 7004C NID provides a secure and weather resistant enclosure for Telco service for residential or commercial installations. The 7004C supplies station protection and test access points and can be configured for a maximum of two POTS lines and one 1740-xx coax protector. The 7004C features convenient cable knockouts and generous working space for wire management.
