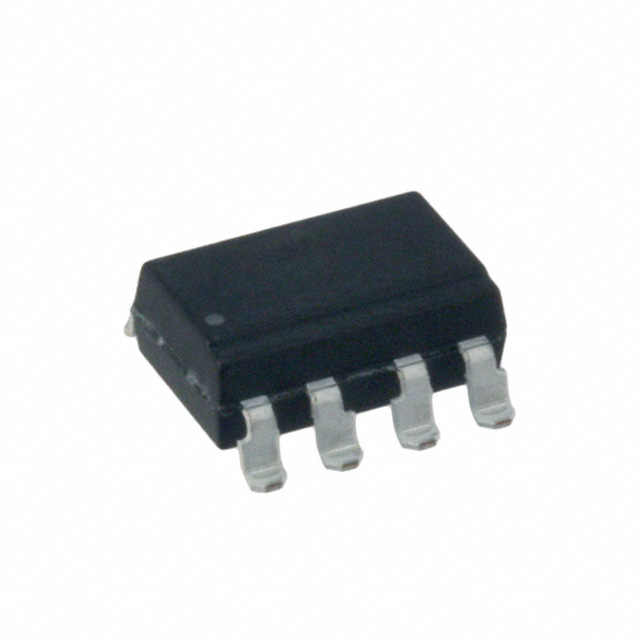

6N135S-TA1: High Speed Optocouplers High Speed 1MBd Transistor Output

6N135S-TA1 Data Sheet

US $ .23~.26 / Piece | Get Latest Price

Part Number:: 6N135S-TA1
Mfg:: Lite-On
Supply Ability:: 5000

Price Break

Qty
0~1000
1000~3250
3250~5000
5000~10000

Unit Price
$.26
$.26
$.24
$.23

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

6N134 evaluate
US $31.2 - 44.57 / Piece

High Speed Optocouplers 10MBd 2CH 1500Vdc Hermetically sealed
6N134#100 evaluate
US $31.41 - 44.87 / Piece

High Speed Optocouplers 10MBd 2CH 1500Vdc Hermetically sealed
6N134#200 evaluate
US $31.41 - 44.87 / Piece

High Speed Optocouplers 10MBd 2CH 1500Vdc Hermetically sealed

Product Details

Quick Details

Current Transfer Ratio :	50 %	Maximum Baud Rate :	1 Mbps
Maximum Forward Diode Voltage :	1.7 V	Maximum Reverse Diode Voltage :	5 V
Maximum Input Diode Current :	25 mA	Maximum Power Dissipation :	100 mW
Maximum Operating Temperature :	+ 70 C	Minimum Operating Temperature :	0 C
Package / Case :	SMD-8	Packaging :	Reel

Description

Maximum Reverse Diode Voltage : 5 V
Maximum Input Diode Current : 25 mA
Maximum Forward Diode Voltage : 1.7 V
Maximum Power Dissipation : 100 mW
Packaging : Reel
Maximum Operating Temperature : + 70 C
Minimum Operating Temperature : 0 C
Maximum Baud Rate : 1 Mbps
Package / Case : SMD-8
Current Transfer Ratio : 50 %

Parameters:

Technical/Catalog Information	6N135S-TA1
Vendor	Lite-On Inc (VA)
Category	Isolators
Isolation Voltage	5000Vrms
Input Type	DC
Output Type	Transistor with Vcc
Current - Output/Channel	8mA
Voltage - Output	20V
Vce Saturation (Max)	-
Current Transfer Ratio (Min)	7% @ 16mA
Mounting Type	Surface Mount
Package / Case	8-SMD
Packaging	Digi-Reel?
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	6N135S TA1 6N135STA1 160 1786 6 ND 16017866ND 160-1786-6
