Features:

50 V Minimum Output Clamp Voltage
150 mA Output Current (all outputs simultaneously)
5 Ω Typical rDS(on)
Low Power Consumption
Replacements for TPIC6B273N and TPIC6B273DW



Pinout

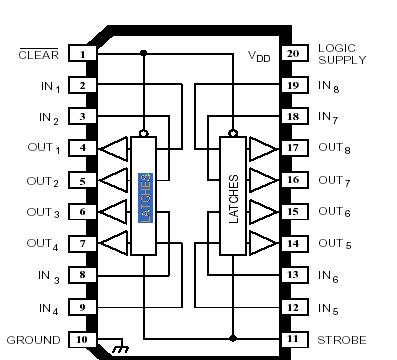

  Connection Diagram


Specifications

Output Voltage, VO ................................ 50 V
Output Drain Current,
Continuous, IO ................................. 150 mA*
Peak, IOM ........................................ 500 mA†
Single-Pulse Avalanche Energy,
EAS ...................................................... 30 mJ
Logic Supply Voltage, VDD .................... 7.0 V
Input Voltage Range,
VI ......................................... -0.3 V to +7.0 V
Package Power Dissipation,
PD ................................................ See Graph
Operating Temperature Range,
TA .................................... -40°C to +125°C
Storage Temperature Range,
TS .................................... -55°C to +150°C



Description

The A6B273KA and A6B273KLW combine eight (positive-edgetriggered D-type) data latches and DMOS outputs for systems requiring relatively high load power. Driver applications include relays, solenoids, and other medium-current or high-voltage peripheral power loads. The CMOS inputs and latches allow direct interfacing with microprocessor-based systems. Use with TTL may require appropriate pull-up resistors to ensure an input logic high.

The DMOS output inverts the DATA input. All of the output drivers are disabled (the DMOS sink drivers turned OFF) with the CLEAR input low. The A6B273KA/KLW DMOS open-drain outputsare capable of sinking up to 500 mA. Similar devices with reduced rDS(on) are available as the A6273KA/KLW.

The A6B273KA is furnished in a 20-pin dual in-line plastic package. The A6B273KLW is furnished in a 20-lead wide-body, small-outline plastic package (SOIC) with gull-wing leads for surfacemount applications. Copper lead frames, reduced supply current requirements, and low on-state resistance allow both devices to sink 150 mA from all outputs continuously, to ambient temperatures over 85°C.
