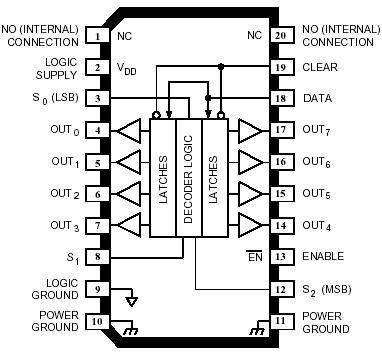

6B259

Output Voltage, VO...............................50 V
Output Drain Current,
Continuous, IO.............................. 150 mA*
Peak, I^_OM...................................... 500 mA†
Single-Pulse Avalanche Energy,

EAS.................................................... 30 mJ
Logic Supply Voltage, V_DD.................. 7.0 V
Input Voltage Range,
V_I....................................... -0.3 V to +7.0 V
Package Power Dissipation,
P_D............................................... See Graph
Operating Temperature Range,
T_A..................................... -40°C to +125°C
Storage Temperature Range,
T_S..................................... -55°C to +150°C

The 6B259 allow direct interfacing with microprocessor- based systems. Use with TTL may require appropriate pullup resistors to ensure an input logic high. Four modes of operation are selectable with the CLEAR and ENABLE inputs.

The 6B259KA/KLW DMOS open-drain outputs are capable of sinking up to 500 mA. Similar devices with reduced rDS(on) are available as the A6259KA/KLW.

The 6B259KA is furnished in a 20-pin dual in-line plastic package. The 6B259KLW is furnished in a 20-lead wide-body, small-outline plastic package (SOIC) with gull-wing leads for surfacemount applications. Copper lead frames, reduced supply current requirements, and low on-state resistance allow either device to sink 150 mA from all outputs continuously, to ambient temperatures greater than 85°C.
