66257FP

Features: • Memory configuration of 5120 words ×8 bits× 2 (dynamic memory)• High-speed cycle ............................................. 25ns (Min.)• High-speed access ......................................... 18ns (Max.)• Output hold ........................................

product image

66257FP Picture
See larger image
SeekIC No. : 004237811 Detail

66257FP: Features: • Memory configuration of 5120 words ×8 bits× 2 (dynamic memory)• High-speed cycle ............................................. 25ns (Min.)• High-speed access .............

66257FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
66257FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Memory configuration of 5120 words ×8 bits× 2 (dynamic memory)
• High-speed cycle ............................................. 25ns (Min.)
• High-speed access ......................................... 18ns (Max.)
• Output hold ........................................................ 3ns (Min.)
• Fully independent, asynchronous write and read operations
• Output .................................................................... 3 states
• Q00 to Q07 ........................................................ 1-line delay
• Q10 to Q17 ........................................................ 2-line delay


Application

Digital photocopiers, high-speed facsimile, laser beam printers.


Pinout

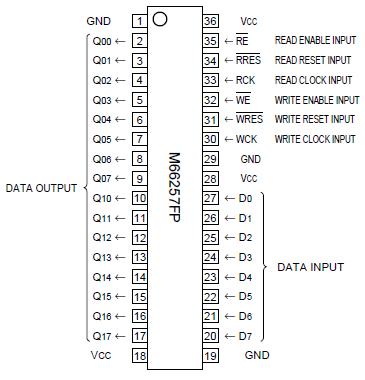

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Rating
Unit
Vcc Supply voltage
 A value based on GND pin
-0.5to+7.0
V
VI Input voltage
0.5 toVcc+0.5
V
Vo Output voltage
0.5 toVcc+0.5
V
Pd Maximum power dissipation Ta = 25°C
660
mW
Tstg Storage temperature
-65 to +150
°C



Description

The 66257FP is a high-speed line memory with a FIFO(First In First Out) structure of 5120-word ´ 8-bit double configuration which uses high-performance silicon gate CMOS process technology.

The 66257FP allows simultaneous output of 1-line delay data and 2-line delay data, and is most suitable for data correction over multiple lines.

The 66257FP has separate clock, enable and reset signals for write and read, and is most suitable as a buffer memory between devices with different data processing throughput.
