Features: • Fast access times: 2.5ns, 3.0ns, and 3.5ns• Fast clock speed: 225, 200, 166, and 150MHz• Fast OE# access times: 2.5ns, 3.0ns, and 3.5ns• Optimal for performance (two cycle chip deselect, depth expansion without wait state)• 3.3V -5% and +10% power supply&#...

product image

6512 Picture
SeekIC No. : 004237335 Detail

6512: Features: • Fast access times: 2.5ns, 3.0ns, and 3.5ns• Fast clock speed: 225, 200, 166, and 150MHz• Fast OE# access times: 2.5ns, 3.0ns, and 3.5ns• Optimal for performance (...

floor Price/Ceiling Price

Part Number:
6512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast access times: 2.5ns, 3.0ns, and 3.5ns
• Fast clock speed: 225, 200, 166, and 150MHz
• Fast OE# access times: 2.5ns, 3.0ns, and 3.5ns
• Optimal for performance (two cycle chip deselect, depth expansion without wait state)
• 3.3V -5% and +10% power supply
• 3.3V or 2.5V I/O supply
• 5V tolerant inputs except I/O's
• Clamp diodes to VSS at all inputs and outputs
• Common data inputs and data outputs
• BYTE WRITE ENABLE and GLOBAL WRITE control
• Multiple chip enables for depth expansion:
three chip enables for TA package version and two chip enables for B and T package versions
• Address pipeline capability
• Address, data and control registers
• Internally self-timed WRITE CYCLE
• Burst control pins (interleaved or linear burst sequence)
• Automatic power-down for portable applications
• JTAG boundary scan for B and T package version
• Low profile 119 bump, 14mm x 22mm PBGA (Ball Grid Array) and 100 pin TQFP packages



Pinout

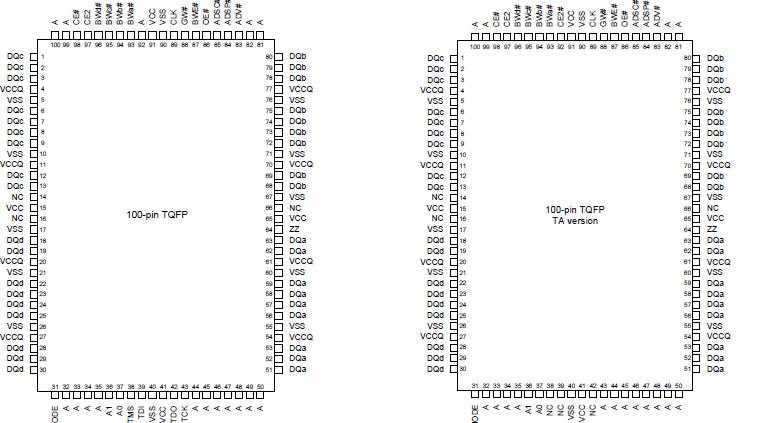

  Connection Diagram


Specifications

Voltage on VCC Supply Relative to VSS........    -0.5V to +4.6V
VIN ........................................................... -0.5V to VCC+0.5V
Storage Temperature (plastic) .......................-55oC to +150o
Junction Temperature ...................................................+150o
Power Dissipation ...........................................................1.0W
Short Circuit Output Current ..........................................50mA
*Stresses greater than those listed uunder "Absolute Maximum Ratings" may cause permanent damage to the device.This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability




Description

The Galvantech Synchronous Burst SRAM family employs high-speed, low power CMOS designs using advanced triple-layer polysilicon, double-layer metal technology. Each memory cell consists of four transistors and two high valued resistors.

The 6512 SRAMs integrate 262,144x36 and 524,288x18 SRAM cells with advanced synchronous peripheral circuitry and a 2-bit counter for internal burst operation. All synchronous inputs are gated by registers controlled by a positive-edge-triggered clock input (CLK). The synchronous inputs include all addresses, all data inputs, address-pipelining chip enable (CE#), depthexpansion chip enables (CE2 and CE2#), burst control inputs (ADSC#, ADSP#, and ADV#), write enables (BWa#, BWb#, BWc#, BWd#, and BWE#), and global write (GW#). However, the CE2# chip enable input is only available for TA package version.

Asynchronous inputs include the output enable (OE#) and burst mode control (MODE). The data outputs (Q), enabled by OE#, are also asynchronous.

Addresses and chip enables are registered with either address status processor (ADSP#) or address status controller (ADSC#) input pins. Subsequent burst addresses can be internally generated as controlled by the burst advance pin (ADV#).

Address, data inputs, and write controls are registered onchip to initiate self-timed WRITE cycle. WRITE cycles can be one to four bytes wide as controlled by the write control inputs. Individual byte write allows individual byte to be written. BWa# controls DQa. BWb# controls DQb. BWc# controls DQc. BWd# controls DQd. BWa#, BWb# BWc#, and BWd# can be active only with BWE# being LOW. GW# being LOW causes all bytes to be written. The x18 version only has 18 data inputs/outputs (DQa and DQb) along with BWa# and BWb# (no BWc#, BWd#, DQc, and DQd).

For the B and T package versions, four pins are used to implement JTAG test capabilities: test mode select (TMS), test data-in (TDI), test clock (TCK), and test data-out (TDO).The JTAG circuitry is used to serially shift data to and from the device. JTAG inputs use LVTTL/LVCMOS levels to shift data during this testing mode of operation. The TA package version does not offer the JTAG capability.

The 6512 operate from a +3.3V power supply. All inputs and outputs are LVTTL compatible
