6381BG: Heat Sinks HIGH PWR EXTR TO218/ 220 38.1mm VERT BLK

6381BG Data Sheet

US $ 6.25~7.09 / Piece | Get Latest Price

Part Number:: 6381BG
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~477
477~500
500~1000

Unit Price
$7.09
$6.75
$6.25

Processing time
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

6381 evaluate
Environmental Test Equipment INFRARED TEMP.PROB
6381 SL001 evaluate
US $1814.99 - 1833.31 / Piece

Multi-Paired Cable 22AWG12PR SHIELD 1000ft SPOOL SLATE
63810-0102 evaluate
US $11.74 - 12.15 / Piece

Hand Tools LOCATOR ASSY BASE

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Aluminum	Fin Style :	Extruded
Length :	25.4 mm	Width :	41.91 mm
Height :	38.1 mm	Designed for :	TO-220, TO-218

Description

Thermal Resistance :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Height : 38.1 mm
Fin Style : Extruded
Length : 25.4 mm
Width : 41.91 mm
Designed for : TO-220, TO-218

Pinout

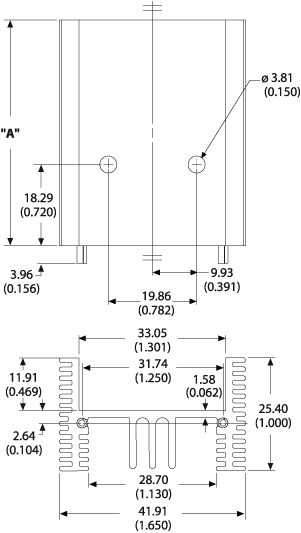

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
6381BG	High power extruded heat sink with solderable pins	Black Anodize	View Hole Dimensions

Description

Thermal Resistance

5.80

Thermal resistance 6381BG value is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	6381BG
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	1.5" (38.1mm)
Material	Aluminum
Package Cooled	TO-220, TO-218
Power Dissipation @ Temperature Rise	6W @ 40°C
Thermal Resistance @ Forced Air Flow	2°C/W @ 400 LFM
Outline	41.91mm x 25.40mm
Thermal Resistance @ Natural	5.8°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	6381BG 6381BG
