6367

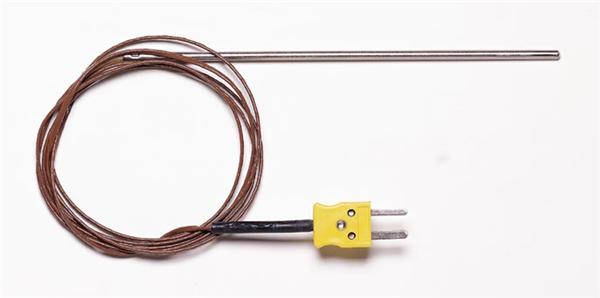

Type: K-Type Thermocouple
Plug Type: Sub-Mini (Thermocouple Plug)
Cable Length: 48.000" (1219.20mm)
Plug Color: Yellow
Usage: Liquids, Semi Solids
Tip - Type: Immersion / Penetration, Rounded
Probe Temperature Range: -40 ~ 500°F (-40 ~ 260°C)
Probe Length: 6.000" (152.40mm)
Probe Material: Stainless Steel
Series: 6367
Manufacturer: Pomona Electronics
Cable Insulation: Perfluoroalkyl


Features:

- Adjustable version output voltage range, 1.23V to 37V +4% max over line  and load conditions
- Guaranteed 1A output current
- Requires only 4 external components
- 52KHz fixed frequency internal oscillator
- TTL shutdown capability, low power standby mode
- High efficiency
- Uses readily available standard inductors
- Thermal shutdown and current limit protection


Application

- Simple high-efficiency step-down (buck) regulator
- Efficient pre-regulator for linear regulators
- On-card switching regulators
- Positive to negative converted (Buck-Boost)


Specifications

Maximum Supply Voltage
                                                                   45V
ON/OFF Pin Input Voltage
                                                                   -0.3V <V< +Vin
Output Voltage to Ground
   (Steady State)                                         -1V
Power Dissipation
                                                                   Internally Limited
Storage Temperature Range
                                                                   -65 C to +150 C
Minimum ESD Rating
   (C = 100pF, R = 1.5K Ohms)                    2KV
Lead Temperature
(Soldering, 10 Sec.)
   CERDIP, TO220                                        260 C
   TO3                                                          300 C
Maximum Junction Temperature
                                                                   150 C
Thermal Resistance
ThetaJA
   Metal Can (Still Air)                                  45 C/W
   Metal Can (500LF/Min Air flow)                10 C/W
   CERDIP    (Still Air)                                   70 C/W
   CERDIP    (500LF/Min Air flow)                 33 C/W
   TO220     (Still Air)                                    68 C/W
   TO220     (500LF/Min Air flow)                  16 C/W
ThetaJC
   Metal Can                                                 3.3 C/W
   CERDIP                                                     2.0 C/W
   TO220                                                       3.8 C/W
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur.Operating Ratings indicate conditions for which the device is intended to be functional, but do not guarantee specific performance limits. For guaranteed specifications and test conditions, see the Electrical Characteristics.

Description

The LM1575 regulator is a monolithic integrated circuit that provides all the active functions for a step-down (buck) switching regulator, capable of driving 1A load with excellent line and load regulation.

Requiring a minimum number of external components, this regulator LM1575 is simple to use and includes internal frequency compensation and a fixed-frequency oscillator.

The LM1575 offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink, and in many cases no heat sink is required.

A standard series of inductors optimized for use with the LM1575 are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies.

Other features of LM1575  include a guaranteed +4% tolerance on output voltage within specified input voltages and output load conditions, and +10% on the oscillator frequency. External shutdown is included, featuring 50uA (typical) standby current. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown for full protection under fault conditions.

Parameters:

Technical/Catalog Information	6367
Vendor	Pomona Electronics
Category	Test Equipment
Cable Insulation	Perfluoroalkyl
Cable Length	48.0" (122cm)
Usage	Liquids, Semi Solids
Tip - Type	Immersion / Penetration, Rounded
Type	K-Type Thermocouple
Plug Color	Yellow
Plug Type	Sub-Mini (Thermocouple Plug)
Probe Length	6.00" (152.40mm)
Probe Material	Stainless Steel
Probe Temperature Range	-40 ~ 500°F (-40 ~ 260°C)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	6367 6367
