6263PB-MT5G

BOARD LEVEL HEAT SINK

product image

6263PB-MT5G Picture
See larger image
SeekIC No. : 004236038 Detail

6263PB-MT5G: BOARD LEVEL HEAT SINK

6263PB-MT5G Data Sheet

floor Price/Ceiling Price

US $ .47~.47 / Piece | Get Latest Price
Part Number:
6263PB-MT5G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~1320
  • Unit Price
  • $.47
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

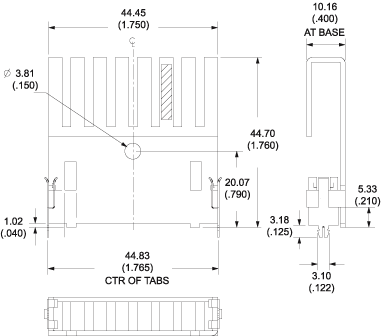

Connection Diagram


Specifications

Part # Description Finish Board Mounting
6263PB-MT5G High rise style heat sink with folded back fins and solderable tabs Pre Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 8.80

Thermal resistance value of 6263PB-MT5G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information6263PB-MT5G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On
Height1.76" (44.7mm)
Material-
Package CooledTO-220, TO-218
Power Dissipation @ Temperature Rise6W @ 60°C
Thermal Resistance @ Forced Air Flow6.0°C/W @ 400 LFM
Outline44.83mm x 10.16mm
Thermal Resistance @ Natural8.8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 6263PB MT5G
6263PBMT5G
