6202PBG

BOARD LEVEL HEAT SINK

product image

6202PBG Picture
See larger image
SeekIC No. : 004235553 Detail

6202PBG: BOARD LEVEL HEAT SINK

6202PBG Data Sheet

floor Price/Ceiling Price

US $ .18~.18 / Piece | Get Latest Price
Part Number:
6202PBG
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • $.18
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

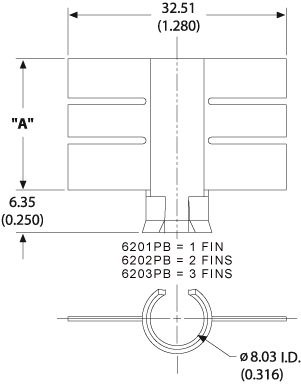

Connection Diagram


Specifications

Part # Description Finish Board Mounting
6202PBG Space saving expandable heat sink Pre-Black Anodize N/A



Description

Thermal Resistance 43.00

Thermal resistance value of 6202PBG is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information6202PBG
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodPress Fit and PC Pin
Height0.75" (19.05mm)
MaterialAluminum
Package CooledTO-5
Power Dissipation @ Temperature Rise1W @ 60°C
Thermal Resistance @ Forced Air Flow15°C/W @ 600 LFM
Outline-
Thermal Resistance @ Natural43°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 6202PBG
6202PBG
