5962R8864401QUC

Features: · Full conformance to MIL-STD-1553A and 1553B· Completely monolithic bipolar technology· Low power consumption· Fit and functionally compatible to industry standard 631XX series·Idle low encoding version · Flexible power supply voltages: VCC=+5V, VEE=-12V or - 15V, and VCCA=+5V to +12V o...

product image

5962R8864401QUC Picture
See larger image
SeekIC No. : 004234360 Detail

5962R8864401QUC: Features: · Full conformance to MIL-STD-1553A and 1553B· Completely monolithic bipolar technology· Low power consumption· Fit and functionally compatible to industry standard 631XX series·Idle low e...

5962R8864401QUC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
5962R8864401QUC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Full conformance to MIL-STD-1553A and 1553B
· Completely monolithic bipolar technology
· Low power consumption
· Fit and functionally compatible to industry standard 631XX series
·Idle low encoding version
· Flexible power supply voltages: VCC=+5V, VEE=-12V or - 15V, and VCCA=+5V to +12V or +5V to +15V
· Full military operating temperature range, -55°C to +125°C, screened to QML Q or QML V requirements
·Standard Military Drawing available


Pinout

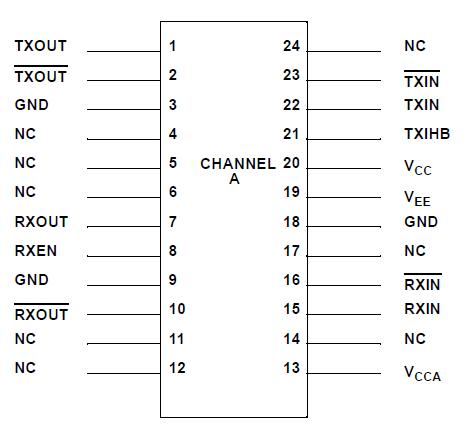

Connection Diagram


Specifications

SYMBOL
PARAMETER
LIMITS
UNIT
VCC Supply Voltage
7.0
V
VEE Supply Voltage
-22
V
VCCA Supply Voltage
+22
V
VIN Input Voltage Range (Receiver)
42
VPP,L-L
VIN Logic Input Voltage
-0.3 to +5.5
V
IO Output Current (Transmitter)
190
mA
PD Power Dissipation (per Channel)
4
W
QJC Thermal Impedance, Junction-to-Case
62
°C/W
TJ Operating Temperature, Junction
-55 to +150
°C
TC Operating Temperature, Case
-55 to +125
°C
TSTG Storage Temperature
-65 to +150
°C



Description

The monolithic UT63M1XX Transceivers are complete transmitter and receiver pairs conforming fully to MIL-STD- 1553A and 1553B. Encoder and decoder interfaces are idle low. UTMC's advanced bipolar technology about UT63M1XX allows the positive analog power to range from +5V to +12V or +5V to +15V, providing more flexibility in system power supply design.

The receiver section of the UT63M1XX series accepts biphasemodulated Manchester II bipolar data from a MIL-STD-1553 data bus and produces TTL-level signal data at its RXOUT and RXOUT outputs. An external RXEN input enables or disables the receiver outputs.
