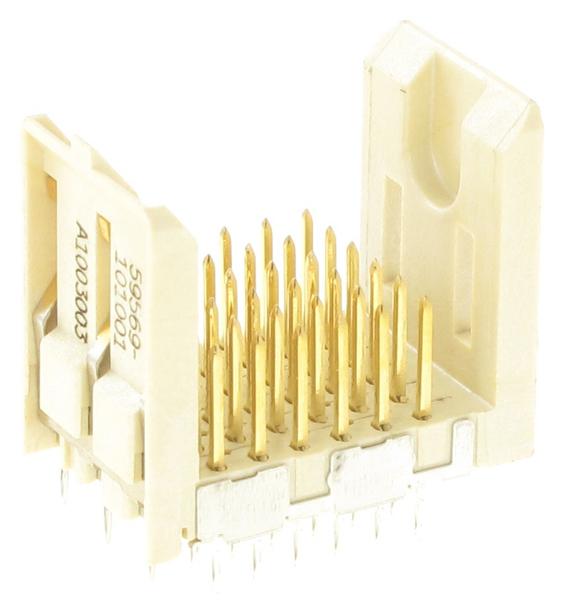

See larger image

SeekIC No. : 002121798 Detail

59569-101001: High Speed / Modular Connectors M4000 SIG HDR 1-MOD 5R PF EXT

59569-101001 Data Sheet

Get Latest Price

Part Number:: 59569-101001
Mfg:: FCI
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5956-16-R evaluate
US $.51 - .82 / Piece

Fuseholders, Clips, & Hardware FUSE CLIP
5956-21 evaluate
US $.43 - .47 / Piece

Fuseholders, Clips, & Hardware UNPLATED FUSE CLIP
59566-1001 evaluate
High Speed / Modular Connectors M4000 SIG HDR.5R P/F STD

Product Details

Quick Details

Series :	Metral	Product Type :	Headers
Number of Rows :	5	Number of Positions / Contacts :	30
Mounting Angle :	Straight	Pitch :	2 mm
Mounting Style :	Through Hole	Termination Style :	Press Fit
Housing Material :	Liquid Crystal Polymer (LCP), Glass Filled	Contact Material :	Copper Alloy

Description

Number of Columns :
Contact Plating :
Termination Style : Press Fit
Contact Material : Copper Alloy
Mounting Style : Through Hole
Series : Metral
Product Type : Headers
Mounting Angle : Straight
Pitch : 2 mm
Housing Material : Liquid Crystal Polymer (LCP), Glass Filled
Number of Rows : 5
Number of Positions / Contacts : 30

Parameters:

Technical/Catalog Information	59569-101001
Vendor	FCI
Category	Connectors
Color	Natural
Connector Style	High Speed
Connector Type	Header, Male Pins, Shrouded
Connector Usage	-
Contact Finish	Gold, GXT?
Contact Finish Thickness	30in (0.76m)
Contact Layout, Typical	30 Single Signal, 6 Ground
Features	-
Mounting Type	Through Hole
Number of Columns	6
Number of Positions	36
Number of Rows	6
Pitch	0.079" (2.00mm)
Termination	Press-Fit
Number of Contacts Loaded	All
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	59569 101001 59569101001
