592201B03400G: Heat Sinks HEAT SINK TO-218/202

592201B03400G Data Sheet

US $ .91~1.35 / Piece | Get Latest Price

Part Number:: 592201B03400G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$1.35
$1.19
$1.01
$.91

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/6/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5922424002F evaluate
LED Circuit Board Indicators Dual Yellow 590nm 5mcd
592201B03400 evaluate
Heat Sinks HEAT SINK TO-218/202
59220-020 evaluate
US $2.64 - 2.64 / Piece

SWITCH SENSOR LEVER SPST/NC

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Aluminum	Fin Style :	Folded Back
Thermal Resistance :	6.8 C / W	Length :	11.938 mm
Width :	49.53 mm	Height :	50.038 mm
Designed for :	TO-218, TO-202

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Fin Style : Folded Back
Thermal Resistance : 6.8 C / W
Length : 11.938 mm
Width : 49.53 mm
Height : 50.038 mm
Designed for : TO-218, TO-202

Pinout

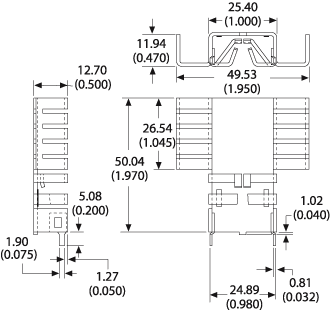

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
592201B03400G	Plug in style heat sink with folded back fins and solderable tabs	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

6.80

Thermal resistance value of 592201B03400G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	592201B03400G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip and PC Pin
Height	1.97" (50.04mm)
Material	Aluminum
Package Cooled	TO-218
Power Dissipation @ Temperature Rise	4W @ 30°C
Thermal Resistance @ Forced Air Flow	1°C/W @ 500 LFM
Outline	49.53mm x 12.70mm
Thermal Resistance @ Natural	6.8°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	592201B03400G 592201B03400G HS340 ND HS340ND HS340
