5915PC-23T-B30-SM0, US $ 26.58-52.04, 5915PC-23T-B30-SM0 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003438545 Detail

5915PC-23T-B30-SM0: FAN 150X172 230V IP54 OIL PROOF

5915PC-23T-B30-SM0 Data Sheet

US $ 26.58~52.04 / Piece | Get Latest Price

Part Number:: 5915PC-23T-B30-SM0
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$52.04
$47.61
$39.86
$36.54
$32.11
$29.9
$27.68
$26.58

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5915 evaluate
US $.61 - .79 / Piece

Heavy Duty Power Connectors PP75 #10-12 AWG CONTACT
59150-010 evaluate
US $.69 - 1.84 / Piece

SENSOR MAGNETIC SPST/NO FLANGE
59150-020 evaluate
US $.82 - 2.17 / Piece

SENSOR MAGNETIC SPST/NO FLANGE

Product Details

Quick Details

Series:	5915PC	Manufacturer:	NMB Technologies Corporation
Air Flow:	222.4 CFM (6.30m³/min)	Bearing Type:	Ball
Fan Type:	Tubeaxial	Features:	IP54, Oil Proof
Noise:	53 dB	Power (Watts):	40W
RPM:	3150 RPM	Size / Dimension:	Rectangular/Rounded - 172mm L x 150mm H x 38mm W
Series :	SP05xBAC	Static Pressure:	0.655 in H2O (163.2 Pa)
Termination:	2 Terminals	Voltage - Rated:	230VAC

Description

Bearing Type: Ball
Fan Type: Tubeaxial
Voltage - Rated: 230VAC
Termination: 2 Terminals
Manufacturer: NMB Technologies Corporation
RPM: 3150 RPM
Series: 5915PC
Size / Dimension: Rectangular/Rounded - 172mm L x 150mm H x 38mm W
Weight: 2.1 lbs (952.5g)
Air Flow: 222.4 CFM (6.30m³/min)
Noise: 53 dB
Power (Watts): 40W
Static Pressure: 0.655 in H2O (163.2 Pa)
Features: IP54, Oil Proof

Parameters:

Technical/Catalog Information	5915PC-23T-B30-SM0
Vendor	NMB Technologies Corporation
Category	Fans, Thermal Management
Air Flow	*
Bearing Type	Ball
Fan Type	Tubeaxial
Noise	*
Power (Watts)	*
Size / Dimension	Rectangular - 150mm L x 172mm H x 38mm W
Static Pressure	*
Termination	2 Terminals
Voltage Rating	230VAC
RPM	*
Weight	1.8 lbs (816.46g)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5915PC 23T B30 SM0 5915PC23TB30SM0 P13609 ND P13609ND P13609

Customers Who Bought This Item Also Bought

5915 - PP75 SB50 CON 10/12
US $$1.57 - 1.14 / Piece

Supply Ability:1005Month

View details
59150-010 - PROXIMITY SENSOR
US $$3.38 - 2.39 / Piece

Supply Ability:1616Month

View details
59150-020 - PROXIMITY SENSOR
US $$1.50 - 1.06 / Piece

Supply Ability:1910Month

View details
59150-030 - PROXIMITY SENSOR
US $$3.64 - 2.61 / Piece

Supply Ability:1741Month

View details
5915PC-10T-B30-B00 AC Fans--NMB
US $$29.51 - 32.80 / Piece

Supply Ability:1Week

View details

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.

5915PC-23T-B30-SM0

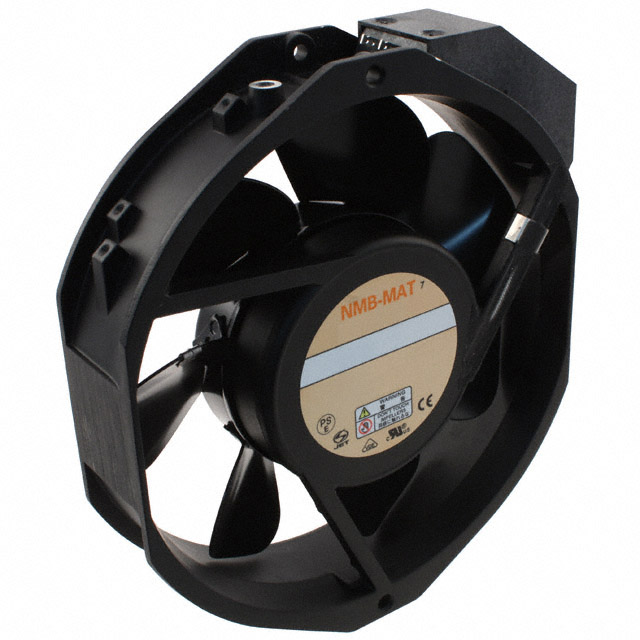

product image
