5915PC-12T-B30-A00, US $ 15.99-31.31, 5915PC-12T-B30-A00 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003438258 Detail

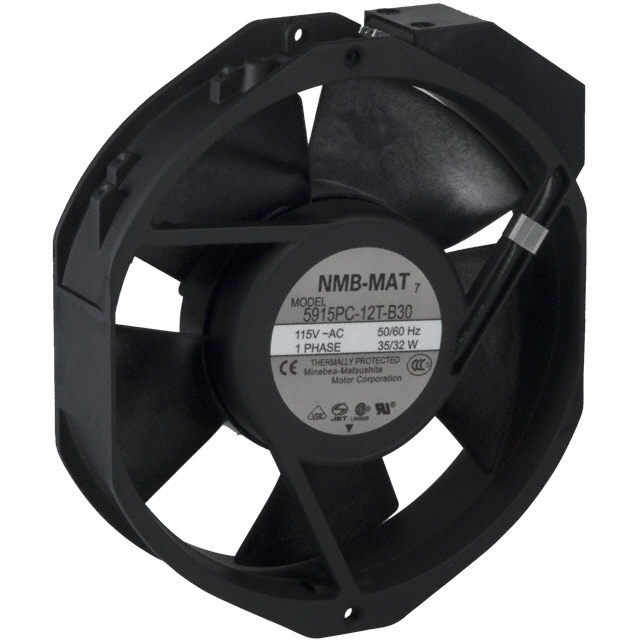

5915PC-12T-B30-A00: FAN AXAL 115V 150X172X38 3200RPM

5915PC-12T-B30-A00 Data Sheet

US $ 15.99~31.31 / Piece | Get Latest Price

Part Number:: 5915PC-12T-B30-A00
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$31.31
$28.65
$23.99
$21.99
$19.32
$17.99
$16.66
$15.99

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5915 evaluate
US $.61 - .79 / Piece

Heavy Duty Power Connectors PP75 #10-12 AWG CONTACT
59150-010 evaluate
US $.69 - 1.84 / Piece

SENSOR MAGNETIC SPST/NO FLANGE
59150-020 evaluate
US $.82 - 2.17 / Piece

SENSOR MAGNETIC SPST/NO FLANGE

Product Details

Quick Details

Series:	5915PC	Manufacturer:	NMB Technologies Corporation
Air Flow:	212.0 CFM (6.00m³/min)	Bearing Type:	Ball
Fan Type:	Tubeaxial	Features:	-
Noise:	56 dB	Power (Watts):	32W
RPM:	3200 RPM	Series :	CE-G
Size / Dimension:	Rectangular/Rounded - 172mm L x 150mm H x 38mm W	Static Pressure:	0.865 in H2O (215.6 Pa)
Termination:	2 Terminals	Voltage - Rated:	115VAC

Description

Bearing Type: Ball
Fan Type: Tubeaxial
Features: -
Voltage - Rated: 115VAC
Termination: 2 Terminals
Manufacturer: NMB Technologies Corporation
RPM: 3200 RPM
Series: 5915PC
Air Flow: 212.0 CFM (6.00m³/min)
Noise: 56 dB
Size / Dimension: Rectangular/Rounded - 172mm L x 150mm H x 38mm W
Static Pressure: 0.865 in H2O (215.6 Pa)
Weight: 1.8 lbs (816.5g)
Power (Watts): 32W

Parameters:

Technical/Catalog Information	5915PC-12T-B30-A00
Vendor	NMB Technologies Corporation
Category	Fans, Thermal Management
Air Flow	212.0 CFM (6.00m³/min)
Bearing Type	Ball
Fan Type	Tubeaxial
Noise	56 dB
Power (Watts)	32W
Size / Dimension	Rectangular - 150mm L x 172mm H x 38mm W
Static Pressure	0.865 in H2O (215.6 Pa)
Termination	2 Terminals
Voltage Rating	115VAC
RPM	3200 RPM
Weight	1.76 lbs (800.00g)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5915PC 12T B30 A00 5915PC12TB30A00 P12899 ND P12899ND P12899
