591202B04000G

Heat Sinks TO-220 VERT MOUNT

product image

591202B04000G Picture
See larger image
SeekIC No. : 002534110 Detail

591202B04000G: Heat Sinks TO-220 VERT MOUNT

591202B04000G Data Sheet

floor Price/Ceiling Price

US $ .23~.23 / Piece | Get Latest Price
Part Number:
591202B04000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~7750
  • Unit Price
  • $.23
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Plug In
Heatsink Material : Aluminum Thermal Resistance : 26.8 C / W
Length : 12.7 mm Width : 12.7 mm
Height : 15.24 mm Designed for : TO-220, TO-262

Description

Fin Style :
Product : Heatsinks
Heatsink Material : Aluminum
Width : 12.7 mm
Length : 12.7 mm
Mounting Style : Plug In
Designed for : TO-220, TO-262
Height : 15.24 mm
Thermal Resistance : 26.8 C / W


Pinout

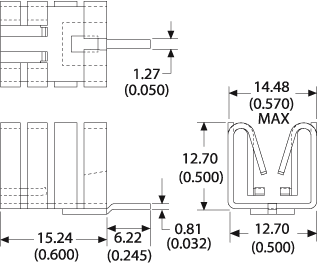

Connection Diagram


Specifications

Part # Description Finish Board Mounting
591202B04000G Plug in style heat sink featuring four spring action clips and vertical mounting tab Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 26.80

Thermal resistance value of 591202B04000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information591202B04000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip and PC Pin
Height0.6" (15.24mm)
MaterialAluminum
Package CooledTO-220, TO-262
Power Dissipation @ Temperature Rise1W @ 40°C
Thermal Resistance @ Forced Air Flow16.0°C/W @ 200 LFM
Outline14.48mm x 12.70mm
Thermal Resistance @ Natural26.8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 591202B04000G
591202B04000G
