591202B03900G

Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Shape: Rectangular
Type: Board Level, Vertical
Height Off Base (Height of Fin): 0.500" (12.70mm)
Attachment Method: Clip and PC Pin
Manufacturer: Aavid Thermalloy
Thermal Resistance @ Forced Air Flow: 16.0°C/W @ 200 LFM
Package Cooled: TO-220, TO-262
Width: 0.500" (12.70mm)
Length: 0.600" (15.24mm)
Power Dissipation @ Temperature Rise: 1W @ 40°C
Thermal Resistance @ Natural: 26.8°C/W


Pinout




Specifications

Part #	Description	Finish	Board Mounting
591202B03900G	Plug in style heat sink featuring four spring action clips and vertical mounting tab	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

26.80

Thermal resistance value of 591202B03900G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information	591202B03900G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip and PC Pin
Height	0.6" (15.24mm)
Material	Aluminum
Package Cooled	TO-220, TO-262
Power Dissipation @ Temperature Rise	1W @ 40°C
Thermal Resistance @ Forced Air Flow	16.0°C/W @ 200 LFM

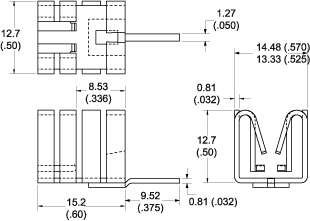

Outline	14.48mm x 12.70mm
Thermal Resistance @ Natural	26.8°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	591202B03900G 591202B03900G
