5910PL-05W-B50-L00, US $ 23.17-45.37, 5910PL-05W-B50-L00 DataSheet download, circuit diagram from SeekIC.com

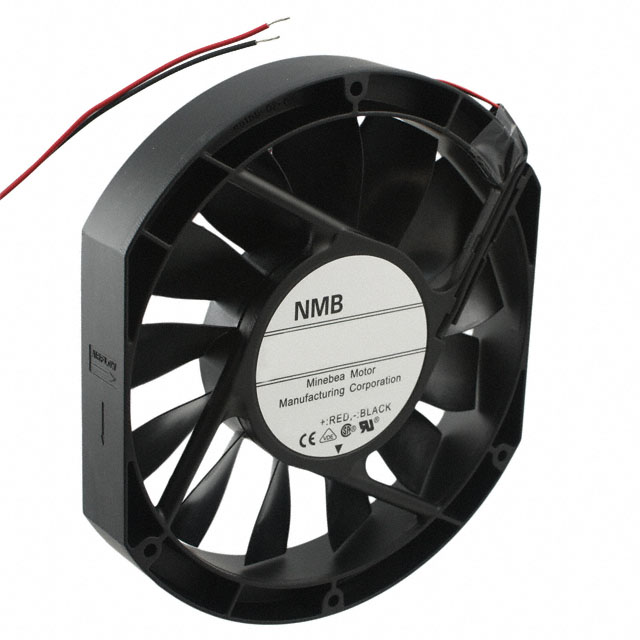

See larger image

SeekIC No. : 003442529 Detail

5910PL-05W-B50-L00: FAN DC AXIAL 24V 150X172X25.4MM

5910PL-05W-B50-L00 Data Sheet

US $ 23.17~45.37 / Piece | Get Latest Price

Part Number:: 5910PL-05W-B50-L00
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$45.37
$41.51
$34.75
$31.86
$28
$26.07
$24.14
$23.17

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5910 evaluate
US $.65 - .85 / Piece

Heavy Duty Power Connectors BUSHING #6 TO #10-12 10-12 AWG
59105-010 evaluate
US $.97 - 2.57 / Piece

SENSOR MAGNETIC SPST/NO FLANGE
59105-020 evaluate
US $1.11 - 2.95 / Piece

SENSOR MAGNETIC SPST/NO HV FLNGE

Product Details

Quick Details

Series:	5910PL	Manufacturer:	NMB Technologies Corporation
Fan Type:	Tubeaxial	Size / Dimension:	Rectangular/Rounded - 172mm L x 150mm H x 25.4mm W
Voltage - Rated:	24VDC	Power (Watts):	24.0W
Features:	-	RPM:	3500 RPM
Noise:	62.5 dB	Static Pressure:	0.657 in H2O (163.7 Pa)
Package / Case :	SOP-20	Air Flow:	250.0 CFM (7.08m³/min)
Termination:	2 Wire Leads	Bearing Type:	Ball

Description

Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Bearing Type: Ball
Manufacturer: NMB Technologies Corporation
Voltage - Rated: 24VDC
RPM: 3500 RPM
Series: 5910PL
Size / Dimension: Rectangular/Rounded - 172mm L x 150mm H x 25.4mm W
Power (Watts): 24.0W
Noise: 62.5 dB
Static Pressure: 0.657 in H2O (163.7 Pa)
Air Flow: 250.0 CFM (7.08m³/min)

Parameters:

Technical/Catalog Information	5910PL-05W-B50-L00
Vendor	NMB Technologies Corporation
Category	Fans
Voltage - Rated	24VDC
Power (Watts)	24W
Bearing Type	Ball
Size / Dimension	Round - 172mm L x 150mm H x 25.4mm W
Air Flow	250 CFM
Features	-
Termination	2 Wire Leads
Fan Type	Tubeaxial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5910PL 05W B50 L00 5910PL05WB50L00 P12865 ND P12865ND P12865
