Features: · P1dB Output Power: +21 dBm· Gain: 21 dB· Output IP3: +33 dBm· Single Supply: +5V· Industry Standard SOT89 PackageApplicationThe HMC589ST89 / HMC589ST89E is ideal for:• Cellular / PCS / 3G• Fixed Wireless & WLAN• CATV, Cable Modem & DBS• Microwave Radio &...

product image

589ST89E Picture
See larger image
SeekIC No. : 004234043 Detail

589ST89E: Features: · P1dB Output Power: +21 dBm· Gain: 21 dB· Output IP3: +33 dBm· Single Supply: +5V· Industry Standard SOT89 PackageApplicationThe HMC589ST89 / HMC589ST89E is ideal for:• Cellular / P...

589ST89E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
589ST89E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· P1dB Output Power: +21 dBm
· Gain: 21 dB
· Output IP3: +33 dBm
· Single Supply: +5V
· Industry Standard SOT89 Package


Application

The HMC589ST89 / HMC589ST89E is ideal for:
• Cellular / PCS / 3G
• Fixed Wireless & WLAN
• CATV, Cable Modem & DBS
• Microwave Radio & Test Equipment
• IF & RF Applications


Pinout

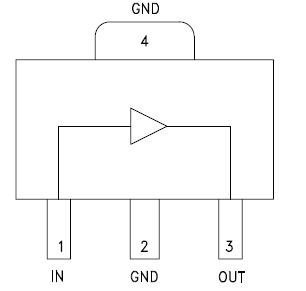

Connection Diagram
