580500B00000G

Heat Sinks BLACK ANODIZE DIP-24

product image

580500B00000G Picture
SeekIC No. : 002533085 Detail

580500B00000G: Heat Sinks BLACK ANODIZE DIP-24

floor Price/Ceiling Price

US $ .47~.71 / Piece | Get Latest Price
Part Number:
580500B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.71
  • $.63
  • $.53
  • $.47
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Slide On
Heatsink Material : Aluminum Fin Style : Staggered
Thermal Resistance : 20 C / W Length : 37.08 mm
Width : 25.6 mm Height : 14.73 mm
Designed for : DIP-24

Description

Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Staggered
Mounting Style : Slide On
Thermal Resistance : 20 C / W
Length : 37.08 mm
Width : 25.6 mm
Height : 14.73 mm
Designed for : DIP-24


Pinout

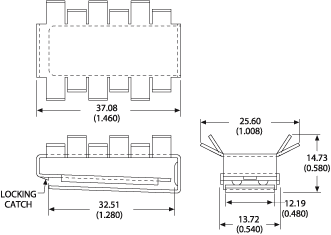

  Connection Diagram


Specifications

Part # Description Finish Board Mounting
580500B00000G Slide on heat sink with staggered fins for 24 pin DIP packages Black Anodize N/A



Description

Thermal Resistance 20.00

Thermal resistance value of 580500B00000G is based on a 75C rise in natural convection
