580200B00000G, US $ .29-.4 , Aavid Thermalloy, 580200B00000G DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002533063 Detail

580200B00000G: Heat Sinks HEAT SINK DIP-14/16

580200B00000G Data Sheet

US $ .29~.4 / Piece | Get Latest Price

Part Number:: 580200B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.4
$.35
$.32
$.29

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5802.3 evaluate
General Purpose / Industrial Relays RMH4J High Current RelayModule, 48VDC, SPDT, 4 ch
580200W00000G evaluate
US $4.26 - 4.26 / Piece

Heat Sinks SLIDEON ANGLED 14-16 PIN DIP 10.41mm HORZ
58024-1 evaluate
US $2307.6 - 2307.6 / Piece

Hand Tools ARBOR FRAME ASSY

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Slide On
Heatsink Material :	Aluminum	Fin Style :	Angled
Thermal Resistance :	20 C / W	Length :	21.26 mm
Width :	15.24 mm	Height :	10.414 mm
Designed for :	DIP-14, DIP-16

Description

Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Angled
Designed for : DIP-14, DIP-16
Mounting Style : Slide On
Thermal Resistance : 20 C / W
Length : 21.26 mm
Width : 15.24 mm
Height : 10.414 mm

Pinout

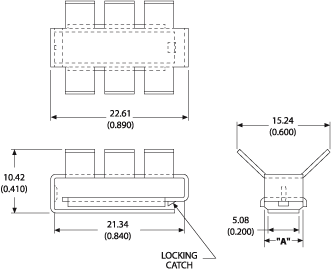

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
580200B00000G	Slide on heat sink with angled fins for 14 or 16 pin DIP packages	Black Anodize	N/A

Description

Thermal Resistance

20.00

Thermal resistance value of 580200B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	580200B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip
Height	0.41" (10.42mm)
Material	Aluminum
Package Cooled	14-DIP and 16-DIP
Power Dissipation @ Temperature Rise	1W @ 20°C
Thermal Resistance @ Forced Air Flow	12.0°C/W @ 200 LFM
Outline	22.61mm x 15.24mm
Thermal Resistance @ Natural	20°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	580200B00000G 580200B00000G HS179 ND HS179ND HS179
