580100W00000G: Heat Sinks SLIDE ON STAGG 8PIN DIP 11.43mm HORZ

580100W00000G Data Sheet

US $ 2.5~2.63 / Piece | Get Latest Price

Part Number:: 580100W00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1190
1190~2500

Unit Price
$2.63
$2.5

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5801 evaluate
Features: *To 4.4 MHz Data Input Rate* High-Voltage, High-Current Outputs* CMOS, NMOS, TTL Compati...
5801.2 evaluate
General Purpose / Industrial Relays RMH1S, High Current RelayModule, 24VAC, SPDT, 1 ch
580100B00000G evaluate
US $1.18 - 1.18 / Piece

Heat Sinks BLK HEAT SINK DIP-8

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Slide On
Heatsink Material :	Aluminum	Fin Style :	Staggered
Thermal Resistance :	30 C / W	Length :	14.27 mm
Width :	15.24 mm	Height :	11.43 mm
Designed for :	DIP-8

Description

Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Staggered
Height : 11.43 mm
Mounting Style : Slide On
Width : 15.24 mm
Thermal Resistance : 30 C / W
Length : 14.27 mm
Designed for : DIP-8

Pinout

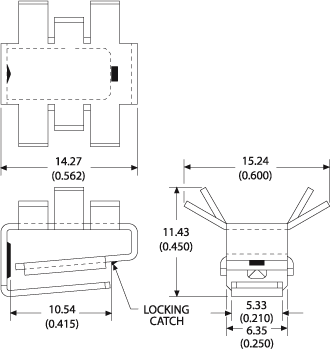

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
580100W00000G	Slide on heat sink with staggered fins for 8 pin DIP packages	Black Anodize w/Dielectri	N/A

Description

Thermal Resistance

30.00

Thermal resistance value of 580100W00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	580100W00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip
Height	0.45" (11.43mm)
Material	Aluminum
Package Cooled	8-DIP
Power Dissipation @ Temperature Rise	1W @ 30°C
Thermal Resistance @ Forced Air Flow	8°C/W @ 500 LFM
Outline	15.24mm x 14.27mm
Thermal Resistance @ Natural	30°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	580100W00000G 580100W00000G
