579604B03300: BOARD LEVEL HEAT SINK

579604B03300 Data Sheet

US $ .29~.29 / Piece | Get Latest Price

Part Number:: 579604B03300
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
1~4000

Unit Price
$.29

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5796 evaluate
US $.2 - .2 / Piece

Circuit Board Hardware - PCB BLADE GRND PIN BLADE 7 SHAPE 18-14 TIN-PL
579604B00000G evaluate
US $1.4 - 1.45 / Piece

Heat Sinks SLIDEON COOLER TO202 22.86mm VERT BLK
5796055-1 evaluate
US $7.74 - 8.77 / Piece

I/O Connectors RECPT 68 POS R/A

Product Details

Description

Pinout

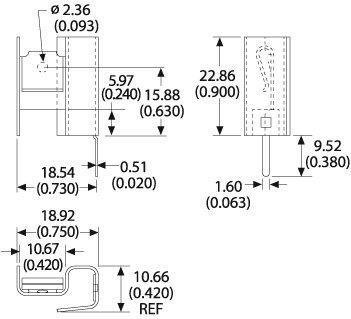

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
579604B03300	Low cost slide on cooler heat sink with left side fin only and solderable tabs	Black Anodize	N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

24.00

Thermal resistance value of 579604B03300 is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	579604B03300
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip
Height	0.9" (22.86mm)
Material	Aluminum
Package Cooled	TO-202
Power Dissipation @ Temperature Rise	1W @ 30°C
Thermal Resistance @ Forced Air Flow	12.0°C/W @ 200 LFM
Outline	18.92mm x 10.66mm
Thermal Resistance @ Natural	24°C/W
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	579604B03300 579604B03300
