578205B00000G, US $ .22-.22 , Aavid Thermalloy, 578205B00000G DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002533905 Detail

578205B00000G: Heat Sinks BLK HEAT SINK TO-5

578205B00000G Data Sheet

US $ .22~.22 / Piece | Get Latest Price

Part Number:: 578205B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~15450

Unit Price
$.22

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5782 evaluate
US $1.74 - 2.19 / Piece

Wire Ducting 1/2" Fmle Bx Cnctor (Galvanized)
5782 BR005 evaluate
US $131.59 - 145.96 / Piece

Multi-Conductor Cable 20AWG 2C SHIELD 100ft SPOOL BROWN
57823-5000 evaluate
US $10567.39 - 10567.39 / Piece

Hand Tools FP50 WIRING JIG

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Snap On
Heatsink Material :	Aluminum	Thermal Resistance :	38 C / W
Length :	10.03 mm	Width :	21.08 mm
Height :	6.35 mm	Designed for :	TO-5

Description

Fin Style :
Product : Heatsinks
Heatsink Material : Aluminum
Designed for : TO-5
Height : 6.35 mm
Mounting Style : Snap On
Length : 10.03 mm
Width : 21.08 mm
Thermal Resistance : 38 C / W

Pinout

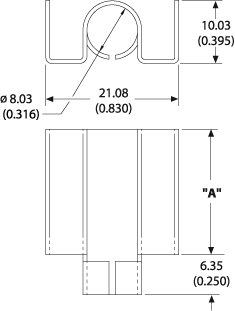

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
578205B00000G	Snap on cooler heat sink	Black Anodize	N/A

Description

Thermal Resistance

38.00

Thermal resistance value of 578205B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	578205B00000G
Vendor	Aavid Thermalloy
Category	Fans, Thermal Management
Attachment Method	Press Fit
Height	0.5" (12.7mm)
Material	Aluminum
Package Cooled	TO-5
Power Dissipation @ Temperature Rise	1.4W @ 50°C
Thermal Resistance @ Forced Air Flow	30°C/W @ 200 LFM
Outline	21.08mm x 10.03mm
Thermal Resistance @ Natural	38°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	578205B00000G 578205B00000G HS217 ND HS217ND HS217
