576403B00000G

Heat Sinks SQ BSKT VANE TO-3 31.75mm HORIZ BLK

product image

576403B00000G Picture
See larger image
SeekIC No. : 002533781 Detail

576403B00000G: Heat Sinks SQ BSKT VANE TO-3 31.75mm HORIZ BLK

576403B00000G Data Sheet

floor Price/Ceiling Price

US $ 3.01~3.08 / Piece | Get Latest Price
Part Number:
576403B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~811
  • 811~1000
  • Unit Price
  • $3.08
  • $3.01
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Heatsink Material : Aluminum
Fin Style : Slanted Vane Thermal Resistance : 5.1 C / W
Length : 45.97 mm Width : 45.97 mm
Height : 31.75 mm Designed for : TO-3

Description

Mounting Style :
Product : Heatsinks
Heatsink Material : Aluminum
Designed for : TO-3
Height : 31.75 mm
Thermal Resistance : 5.1 C / W
Length : 45.97 mm
Width : 45.97 mm
Fin Style : Slanted Vane


Pinout

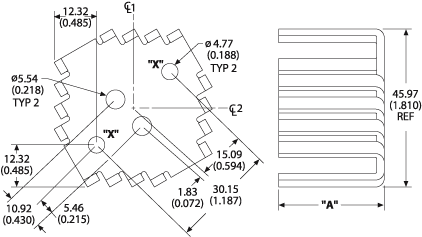

Connection Diagram


Specifications

Part # Description Finish Board Mounting
576403B00000G Square Basket heat sink featuring slanted vane fins Black Anodize N/A



Description

Thermal Resistance 5.10

Thermal resistance value of 576403B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information576403B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On
Height1.25" (31.75mm)
MaterialAluminum
Package CooledTO-3
Power Dissipation @ Temperature Rise10W @ 50°C
Thermal Resistance @ Forced Air Flow1.5°C/W @ 600 LFM
Outline45.97mm x 45.97mm
Thermal Resistance @ Natural5.1°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 576403B00000G
576403B00000G
