576103B00000G: BOARD LEVEL HEAT SINK

576103B00000G Data Sheet

US $ .62~.62 / Piece | Get Latest Price

Part Number:: 576103B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
1~1500

Unit Price
$.62

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

576103-7 evaluate
US $71.02 - 78.79 / Piece

Hand Tools FR SHEAR PLATE
576103B00500 evaluate
US $.82 - .82 / Piece

BOARD LEVEL HEAT SINK
576105P004 evaluate
US $2.59 - 4.85 / Piece

HEAT SHRINK TUBING

Product Details

Description

Pinout

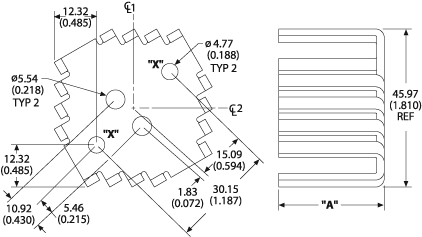

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
576103B00000G	Square Basket heat sink featuring slanted vane fins	Black Anodize	N/A

Description

Thermal Resistance

7.20

Thermal resistance value of 576103B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	576103B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	0.5" (12.7mm)
Material	Aluminum
Package Cooled	TO-3
Power Dissipation @ Temperature Rise	6W @ 50°C
Thermal Resistance @ Forced Air Flow	2.5°C/W @ 400 LFM
Outline	45.97mm x 45.97mm
Thermal Resistance @ Natural	7.2°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	576103B00000G 576103B00000G
