SeekIC No. : 002533109 Detail

569022B00000G: Heat Sinks TO-220 DUAL 5.5TR

569022B00000G Data Sheet

US $ 1~1.53 / Piece | Get Latest Price

Part Number:: 569022B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$1.53
$1.36
$1.16
$1

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5690 evaluate
US $1.67 - 2.16 / Piece

Heavy Duty Power Connectors BUSHING FOR 944 CONTACT 36526 - #2
56900000015 evaluate
US $1.12 - 1.12 / Piece

ACS CAP 569
569000B00000 evaluate
US $5.33 - 5.48 / Piece

Heat Sinks - LED SQ BASKT TO-3 LED 33.27mm VERT BLK

Product Details

Quick Details

Product :	Heatsinks	Heatsink Material :	Aluminum
Fin Style :	Folded Back	Thermal Resistance :	5.5 C / W
Length :	46.482 mm	Width :	46.482 mm
Height :	33.274 mm	Designed for :	Dual TO-220

Description

Mounting Style :
Product : Heatsinks
Heatsink Material : Aluminum
Thermal Resistance : 5.5 C / W
Length : 46.482 mm
Width : 46.482 mm
Height : 33.274 mm
Fin Style : Folded Back
Designed for : Dual TO-220

Pinout

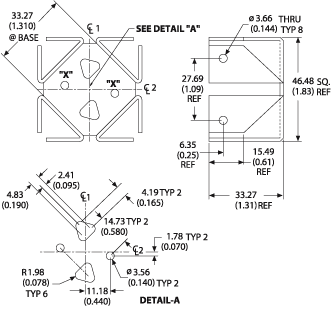

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
569022B00000G	Square basket heat sink features folded back fins	Black Anodize	N/A

Description

Thermal Resistance

5.50

Thermal resistance value of 569022B00000G is based on a 75C rise in natural convection
