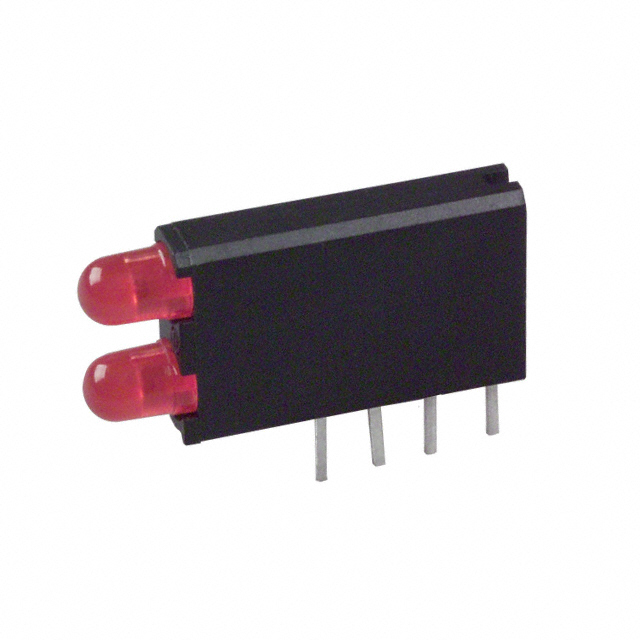

569-0111-100: LED Circuit Board Indicators RED DIFFUSED

569-0111-100 Data Sheet

Get Latest Price

Part Number:: 569-0111-100
Mfg:: Dialight
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

569-0101-212F evaluate
US $1.21 - 1.9 / Piece

LED Circuit Board Indicators 3mm CBI
569-0101-232F evaluate
US $1.21 - 1.9 / Piece

LED Circuit Board Indicators 3mm CBI
569-0101-237F evaluate
US $1.21 - 1.9 / Piece

LED Circuit Board Indicators CBI 3MM DUAL BI-LEVE

Product Details

Quick Details

LED Size :	3 mm	Illumination Color :	Red
Lens Color/Style :	Tinted	Wavelength :	635 nm
Luminous Intensity :	10 mcd	Mounting Type :	Through Hole
Viewing Angle :	60 deg	Packaging :	Bulk

Description

LED Size : 3 mm
Mounting Type : Through Hole
Viewing Angle : 60 deg
Luminous Intensity : 10 mcd
Packaging : Bulk
Lens Color/Style : Tinted
Illumination Color : Red
Wavelength : 635 nm

Features:

• Multiple CBIs form horizontal LED arrays on 3.35mm (0.132") center-lines
• High Contrast, UL 94 V-0 rated, black housing
• Oxygen index: 32%
• Polymer content: PBT, 0.446 g
• Housing stand-offs facilitate PCB cleaning
• Solderability per MIL-STD-202F, method 208F
• LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
• Compatible with: 569-010x-xxx Dual Bi-Level

Specifications

Power Dissipation (mW)                                                           100
Forward Current (mA)  Derating (mA/°C) From 55°C        20.44
Operating Temperature (°C)                                         -40/+100
Storage Temperature (°C)                                            -40/+100
Soldering Temperature       260°C, 5 seconds, 1.6 mm from case

Parameters:

Technical/Catalog Information	569-0111-100
Vendor	Dialight
Category	Optoelectronics
Color	Red (x 2)
Mounting Type	Through Hole, Right Angle
Configuration	2 high
Voltage Rating	2.0V
Current	20mA
Lens Style/Size	Round, 3mm, T-1
Packaging	Bulk
Lens Type	Diffused, Red Tinted
Other Names	569 0111 100 5690111100 350 1330 ND 3501330ND 350-1330
