Features:

• Wideband I/Q demodulator
- RF input 950 to 2150 MHz
- External lowpass filter
- Integrated post-filter baseband drivers
• Integrated VCO and frequency synthesizer
• AGC Amplifier

Application

• Digital Satellite
• VSAT Receivers

Pinout

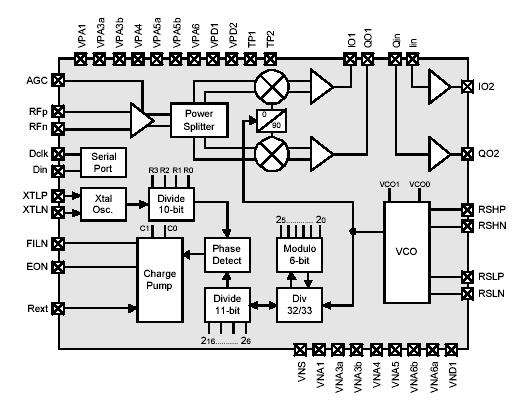

Connection Diagram

Specifications

PARAMETER	RATING
Storage temperature	-55 to 150
Junction operating temperature	+110
Positive supply voltage (Vp)	-0.3 to 6V
Voltage applied to any pin	-0.3V to VCCn+0.3V

Description

The 5504-DCR is a low cost, high performance direct conversion receiver (DCR) specifically designed for digital wireless applications. The DCR architecture provides a receiver design with fewer external components than the conventional dual conversion approach. The 5504-DCR is designed to operate over an input frequency range of 950 to 2150 MHz. The device accepts an input signal in this frequency range and down converts directly to baseband. The local oscillator signal of 5504-DCR is generated by a completely integrated phase lock loop that is fully programmable through a standard serial port interface.
