Features:

Non-inverting buffers
TTL input and output level compatible
CMOS power consumption
Output sink capability of 48 mA, source capability of 12 mA
Flow-through pinout for ease of PC board layout
Standard Microcircuit Drawing (SMD) 5962-8976601


Pinout

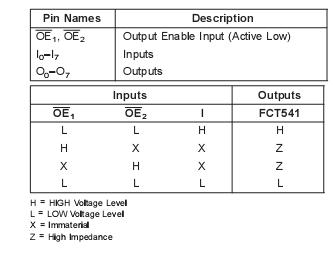

Connection Diagram Connection Diagram Connection Diagram


Specifications

Storage Temperature ...................................................-65 to +150
Ambient Temperature under Bias................................. -55 to +125
Junction Temperature under Bias
    Ceramic ....................................................................-55 to +175
VCC Pin Potential to
    Ground Pin .................................................................-0.5V to +7.0V
Input Voltage (Note 2) ...................................................-0.5V to +7.0V
Input Current (Note 2) .............................................-30 mA to +5.0 mA
Voltage Applied to Any Output
    in the Disabled or
    Power-Off State .......................................................-0.5V to +4.75V
    in the HIGH State .........................................................-0.5V to V CC
Current Applied to Output
    in LOW State (Max) ....................................Twice the rated IOL (mA)
DC Latchup Source Current...................................................... -500 mA



Description

The 54FCT541 is an octal buffer and line driver with TRI-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/ receiver. The 54FCT541 is similar to the 'FCT244 with broad-
side pinout.
