Features:

* Common parallel I/O for reduced pin count
* Additional serial inputs and outputs for expansion
* Four operating modes: shift left, shift right, load and
   store
* TRI-STATE outputs for bus-oriented applications
* Guaranteed 4000V minimum ESD protection


Pinout

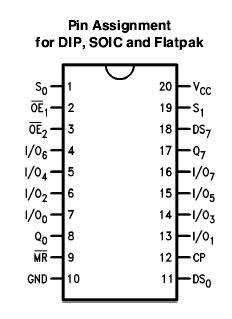

Connection Diagram


Specifications

Storage Temperature .........................................................................................-65 to +150
Ambient Temperature under Bias .......................................................................-55 to +125
Junction Temperature under Bias .......................................................................-55 to +175
   Plastic ..............................................................................................................-55 to +150
VCC Pin Potential to
   Ground Pin ........................................................................................................-0.5V to +7.0V
Input Voltage (Note 2) .........................................................................................-0.5V to +7.0V
Input Current (Note 2) ...................................................................................-30 mA to +5.0 mA
Voltage Applied to Output
   in HIGH State (with VCC e 0V)
   Standard Output ..................................................................................................-0.5V to VCC
   TRI-STATE® Output ...........................................................................................-0.5V to +5.5V
Current Applied to Output
   in LOW State (Max) ..............................................................................twice the rated IOL (mA)


Description

The 54F299 is an 8-bit universal shift/storage register with TRI-STATE® outputs. Four modes of operation are possible:hold (store), shift left, shift right and load data. The parallel load inputs and flip-flop outputs of 54F299 are multiplexed to reduce the total number of package pins. Additional outputs, Q0±Q7, are provided to allow easy serial cascading. A separate active LOW Master Reset of 54F299 is used to reset the register.
