54ACTQ16374

Supply Voltage (V_CC)......... −0.5V to +7.0V
DC Input Diode Current (I_IK)
V_I = −0.5V.................. −20 mA
V_I = V_CC + 0.5V ............ ...+20 mA
DC Output Diode Current (I_OK)
V_O = −0.5V ..................−20 mA
V_O = V_CC + 0.5V ...............+20 mA
DC Output Voltage (V_O)..... −0.5V to V_CC + 0.5V
DC Output Source/Sink Current (I_O)..... ±50 mA
DC V_CC or Ground Current
per Output Pin ................±50 mA
Junction Temperature
CDIP ....................+175°C
Storage Temperature ......−65°C to +150°C
Recommended Operating
Conditions
Supply Voltage (V_CC)
'ACTQ............ 4.5V to 5.5V
Input Voltage (V_I) ............0V to V_CC
Output Voltage (V_O) ..........0V to V_CC
Operating Temperature (T_A):
54ACTQ ............−55°C to +125°C
Minimum Input Edge Rate (dV/dt)
'ACTQ Devices ..............125 mV/ns
V_IN from 0.8V to 2.0V
V_CC ^@ 4.5V, 5.5V
Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. National does not recommend operation of FACT™ circuits outside databook specifications.

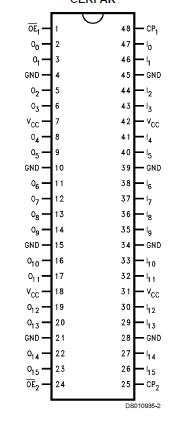

The 54ACTQ16374 contains sixteen non-inverting D flip-flops with TRI-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and Output Enable (OE) of 54ACTQ16374 are common to each byte and can be shorted together for full 16-bit operation.

The 54ACTQ16374 utilizes NSC Quiet Series technology to guarantee quiet output switching and improved dynamic threshold performance. 54ACTQ16374 features GTO^® output control for superior performance.
