54ACTQ16373

If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage (V_CC).............................. −0.5V to +7.0V
DC Input Diode Current (I_IK)
     V_I = −0.5V ....................................................−20 mA
     V_I = V_CC + 0.5V ............................................+20 mA
DC Output Diode Current (I_OK)
    V_O = −0.5V ....................................................−20 mA
    V_O = VCC + 0.5V........................................... +20 mA
DC Output Voltage (V_O) ................−0.5V to V_CC + 0.5V
DC Output Source/Sink Current (I_O) .................+50 mA
DC V_CC or Ground Current ................................+50 mA
    per Output Pin
Junction Temperature
    CDIP ............................................................+175°C
Storage Temperature .....................−65°C to +150°C

Note : Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. National does not recommend operation of FACT™ circuits outside databook specifications

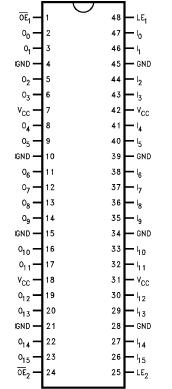

The 54ACTQ16373 contains sixteen non-inverting latches with TRI-STATE outputs and is intended for bus oriented applications.The device is byte controlled. The flip-flops appear transparent to the data when the Latch Enable (LE) is HIGH.When LE is low, the data that meets the setup time is latched. Data of 54ACTQ16373 appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in high Z state. The 54ACTQ16373 utilizes NSC Quiet Series technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series™ features GTO™output control for superior performance.
