54ACTQ16240

Features:

Utilizes NSC FACT Quiet Series technology
Guaranteed simultaneous switching noise level and dynamic threshold performance
Separate control logic for each byte
16-bit version of the 'ACTQ240
Outputs source/sink 24 mA
Standard Microcircuit Drawing (SMD) 5962-9688001


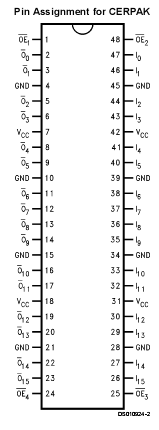

Pinout




Specifications

Supply Voltage (V )................ -0.5V to +7.0V CC
DC Input Diode Current (I ) IK
  V = -0.5V ............................................-20 mA I
  V = V + 0.5V .................................+20 mA I CC
DC Output Diode Current (I ) OK
  V = -0.5V ...........................................-20 mA O
  V = V + 0.5V............................... +20 mA O CC
DC Output Voltage (V ) ..-0.5V to V + 0.5V O CC
DC Output Source/Sink Current (I )... ±50 mA O
DC V or Ground Current CC
   per Output Pin ...................................±50 mA
Junction Temperature
   CDIP................................................... +175?C
Storage Temperature .............-65?C to +150?C


Description

The 54ACTQ16240 contains sixteen inverting buffers with TRI-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/ receiver. The 54ACTQ16240 is nibble controlled. Each nibble has separate TRI-STATE control inputs which can be shorted together for full 16-bit operation.

The 54ACTQ16240 utilizes NSC Quiet Series technology to guarantee quiet output switching and improve dynamic threshold performance. FACT Quiet Series(TM) features GTO(TM) output control for superior performance.
