54ACT00

Features: `ICC reduced by 50%`Outputs source/sink 24 mA`'ACT00 has TTL-compatible inputs`Standard Microcircuit Drawing (SMD)- 'AC00: 5962-87549- 'ACT00: 5962-87699PinoutSpecificationsSupply Voltage (VCC)......... −0.5V to +7.0VDC Input Diode Current (IIK)VI = −0.5V................. . &...

product image

54ACT00 Picture
See larger image
SeekIC No. : 004233128 Detail

54ACT00: Features: `ICC reduced by 50%`Outputs source/sink 24 mA`'ACT00 has TTL-compatible inputs`Standard Microcircuit Drawing (SMD)- 'AC00: 5962-87549- 'ACT00: 5962-87699PinoutSpecificationsSupply Voltage ...

54ACT00 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
54ACT00
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`ICC reduced by 50%
`Outputs source/sink 24 mA
`'ACT00 has TTL-compatible inputs
`Standard Microcircuit Drawing (SMD)
- 'AC00: 5962-87549
- 'ACT00: 5962-87699

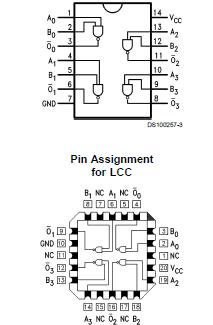

Pinout

Connection Diagram




Specifications

Supply Voltage (VCC)......... −0.5V to +7.0V
DC Input Diode Current (IIK)
VI = −0.5V................. . −20 mA
VI = VCC + 0.5V ................+20 mA
DC Input Voltage (VI)...... −0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
VO = −0.5V ................ ..−20 mA
VO = VCC + 0.5V ................+20 mA
DC Output Voltage (VO).... . −0.5V to VCC + 0.5V
DC Output Source
or Sink Current (IO) ..............±50 mA
DC VCC or Ground Current
per Output Pin (ICC or IGND) ..........±50 mA
Storage Temperature (TSTG) ....−65°C to +150°C
Junction Temperature (TJ)
CDIP....................... 175°C


Temperature Min -55 deg C
Temperature Max 125 deg C
View Using Catalog





Description

The 54ACT00 contains four 2-input NAND gates.

The 54ACT00 contains four 2-input NAND gates.

Application Notes

Title Size in Kbytes Date
AN-925: Radiation Design Test Data for Advanced CMOS Product 194 Kbytes 5-Aug-95 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.
