54AC374

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.

Supply Voltage (V_CC)........... −0.5V to +7.0V
DC Input Diode Current (I_IK)
V_I = −0.5V ................ ....−20 mA
V_I = V_CC + 0.5V.................. +20 mA
DC Input Voltage (V_I) .........−0.5V to V_CC + 0.5V
DC Output Diode Current (I_OK)
V_O = −0.5V..................... −20 mA
V_O = V_CC + 0.5V.............. .... +20 mA
DC Output Voltage (V_O) ........−0.5V to V_CC + 0.5V
DC Output Source
or Sink Current (I_O) .................±50 mA
DC VCC or Ground Current
per Output Pin (ICC or I_GND) .............±50 mA
Storage Temperature (T_STG) .......−65°C to +150°C
Junction Temperature (T_J)
CDIP.......................... 175°C
Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply,temperature, and output/input loading variables. National does not recommend operation of FACT® circuits outside databook specifications.

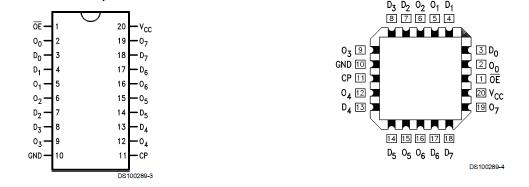

The 54AC374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and TRI-STATE outputs for bus-oriented applications. A buffered Clock (CP) and Output Enable (OE) are common to all flip-flops.

The 54AC374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and TRI-STATE outputs for bus-oriented applications. A buffered Clock (CP) and Output Enable (OE#) are common to all flip-flops.
