54AC280

Supply Voltage (V_CC)......... −0.5V to +7.0V
DC Input Diode Current (I_IK)
V_I = −0.5V................. . −20 mA
V_I = V_CC + 0.5V ................+20 mA
DC Input Voltage (V_I)...... −0.5V to V_CC + 0.5V
DC Output Diode Current (I_OK)
V_O = −0.5V ................ ..−20 mA
V_O = V_CC + 0.5V ................+20 mA
DC Output Voltage (V_O).... . −0.5V to VCC + 0.5V
DC Output Source
or Sink Current (I_O) ..............±50 mA
DC VCC or Ground Current
per Output Pin (ICC or I_GND) ..........±50 mA
Storage Temperature (T_STG) ....−65°C to +150°C
Junction Temperature (T_J)
Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply,temperature, output/input loading variables. National does not recommend operation of FACT circuits outside databook specifications.

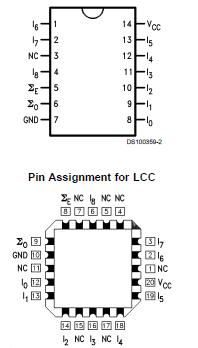

The 54AC280 is a high-speed parity generator/checker that accepts nine bits of input data and detects whether an even or an odd number of these inputs is HIGH. If an even number of inputs is HIGH, the Sum Even output is HIGH. If an odd number is HIGH, the Sum Even output is LOW. The Sum Odd output of 54AC280 is the complement of the Sum Even output.
