54AC163_1354750

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
Supply Voltage (V_CC)                                      −0.5V to +7.0V
DC Input Diode Current (I_IK)
V_I = −0.5V                                                      −20 mA
V_I = V_CC + 0.5V                                              +20 mA
DC Input Voltage (V_I)                                     −0.5V to V_CC + 0.5V
DC Output Diode Current (I_OK)
V_O = −0.5V                                                     −20 mA
V_O = V_CC + 0.5V                                             +20 mA
DC Output Voltage (V_O)                                  −0.5V to V_CC + 0.5V
DC Output Source
or Sink Current (I_O)                                        ±50 mA
DC VCC or Ground Current
per Output Pin (I_CC or I_GND)                           ±50 mA
Storage Temperature (T_STG)                           −65°C to +150°C
Junction Temperature(T_J)
CDIP                                                                175°C

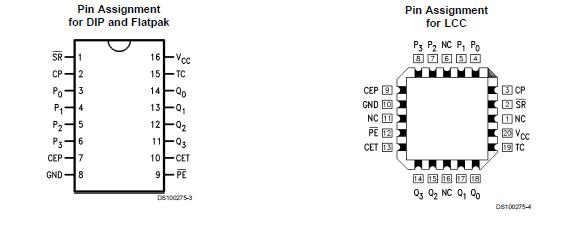

The 54AC163_1354750 are high-speed synchronous modulo-16 binary counters. They are synchronously presettable for application in programmable dividers and have two types of Count Enable inputs plus a Terminal Count output for versatility in forming synchronous multistage counters. The 54AC163_1354750 has a Synchronous Reset input that overrides counting and parallel loading and allows the outputs to be simultaneously reset on the rising edge of the clock.
