54AC161

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.

Supply Voltage (V_CC)........... −0.5V to +7.0V
DC Input Diode Current (I_IK)
V_I = −0.5V ................ ....−20 mA
V_I = V_CC + 0.5V.................. +20 mA
DC Input Voltage (V_I) .........−0.5V to V_CC + 0.5V
DC Output Diode Current (I_OK)
V_O = −0.5V..................... −20 mA
V_O = V_CC + 0.5V.............. .... +20 mA
DC Output Voltage (V_O) ........−0.5V to V_CC + 0.5V
DC Output Source
or Sink Current (I_O) .................±50 mA
DC VCC or Ground Current
per Output Pin (ICC or I_GND) .............±50 mA
Storage Temperature (T_STG) .......−65°C to +150°C
Junction Temperature (T_J)
CDIP.......................... 175°C
Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply,
temperature, and output/input loading variables. National does not recommend operation of FACT™ circuits outside databook specifications.

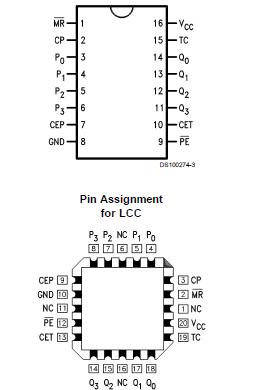

The 54AC161 are high-speed synchronous modulo-16 binary counters. They are synchronously presettable for application in programmable dividers and have two types of Count Enable inputs plus a Terminal Count output for versatility in forming synchronous multistage counters. The 54AC161 has an asynchronous Master Reset input that overrides all other inputs and forces the outputs LOW.

The 54AC161 are high-speed synchronous modulo-16 binary counters. They are synchronously presettable for application in programmable dividers and have two types of Count Enable inputs plus a Terminal Count output for versatility in forming synchronous multistage counters. The 54AC161 has an asynchronous Master Reset input that overrides all other inputs and forces the outputs LOW.
