54AC153D_1354779

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
Supply Voltage (V_CC)                                                 −0.5V to +7.0V
DC Input Diode Current (I_IK)
V_I = −0.5V                                                                 −20 mA
V_I = V_CC + 0.5V                                                         +20 mA
DC Input Voltage (V_I)                                                −0.5V to V_CC + 0.5V
DC Output Diode Current (IOK)
V_O = −0.5V                                                                −20 mA
V_O = V_CC + 0.5V                                                        +20 mA
DC Output Voltage (V_O)                                             −0.5V to V_CC + 0.5V
DC Output Source
or Sink Current (I_O)                                                    ±50 mA
DC VCC or Ground Current
per Output Pin (I_CC or I_GND)                                       ±50 mA
Storage Temperature (T_STG)                                       −65°C to +150°C
Junction Temperature (T_J)
CDIP                                                                            175°C

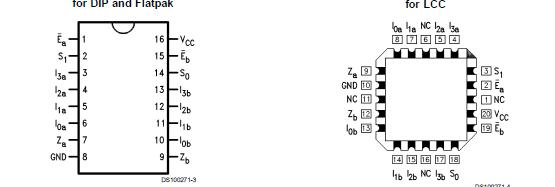

The 54AC153D_1354779 is a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section. It can select two lines of data from four  sources. The two buffered outputs present data in the true (non-inverted) form. In addition to multiplexer operation, the 54AC153D_1354779can act as a function generator and generate any two functions of three variables.
