Features:

* TRI-STATE outputs for bus interfacing
* Output sink capability of 48 mA, source capability of
   24 mA
* Guaranteed multiple output switching specifications
* Output switching specified for both 50 pF and 250 pF
   loads
* Guaranteed simultaneous switching, noise level and
   dynamic threshold performance
* Guaranteed latchup protection
* High impedance glitch free bus loading during entire
   power up and power down
* Nondestructive hot insertion capability
* Standard Microcircuit Drawing (SMD) 5962-9321801


Pinout

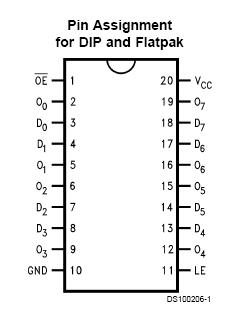

Connection Diagram


Specifications

Storage Temperature ..................................................................................−65 to +150
Ambient Temperature under Bias ................................................................−55 to +125
Junction Temperature under Bias
   Ceramic ....................................................................................................−55 to +175
VCC Pin Potential to
   Ground Pin .................................................................................................−0.5V to +7.0V
Input Voltage (Note 2) ..................................................................................−0.5V to +7.0V
Input Current (Note 2) ...........................................................................−30 mA to +5.0 mA
Voltage Applied to Any Output
   in the Disabled or
   Power-Off State .........................................................................................−0.5V to +5.5V
   in the HIGH State ..........................................................................................−0.5V to VCC
Current Applied to Output
   in LOW State (Max) .....................................................................twice the rated IOL (mA)
Over Voltage Latchup (I/O) .............................................................................................10V


Description

The 54ABT373 consists of eight latches with TRI-STATE outputs for bus organized system applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE of 54ABT373 is LOW, the data that meets the setup times is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH the bus output is in the high impedance state.
