54ABT240

* Output sink capability of 48 mA, source capability of
   24 mA
* Guaranteed latchup protection
* High impedance glitch free bus loading during entire
   power up and power down cycle
* Nondestructive hot insertion capability
* Standard Microcircuit Drawing (SMD)-5962-9318801

Storage Temperature .....................................................................−65°C to +150°C
Ambient Temperature under Bias ...................................................−55°C to +125°C
Junction Temperature under Bias
   Ceramic .......................................................................................−55°C to +175°C
V_CC Pin Potential to
   Ground Pin ......................................................................................−0.5V to +7.0V
Input Voltage (Note 2) ......................................................................−0.5V to +7.0V
Input Current (Note 2) ................................................................−30 mA to +5.0 mA
Voltage Applied to Any Output
   in the Disabled or
   Power-Off State ................................................................................−0.5V to 5.5V
   in the HIGH State ..............................................................................−0.5V to V_CC
Current Applied to Output
   in LOW State (Max) .........................................................twice the rated I_OL (mA)
DC Latchup Source Current
   (Across Comm Operating
   Range) ....................................................................................................−150 mA
Over Voltage Latchup (I/O) ................................................................................10V

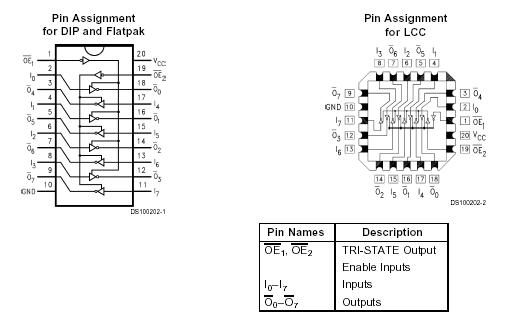

The 54ABT240  is an inverting octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitter or receiver which provides improved PC board density.
