5338H1

LED Circuit Board Indicators RED DIFFUSED RIGHT ANGLE

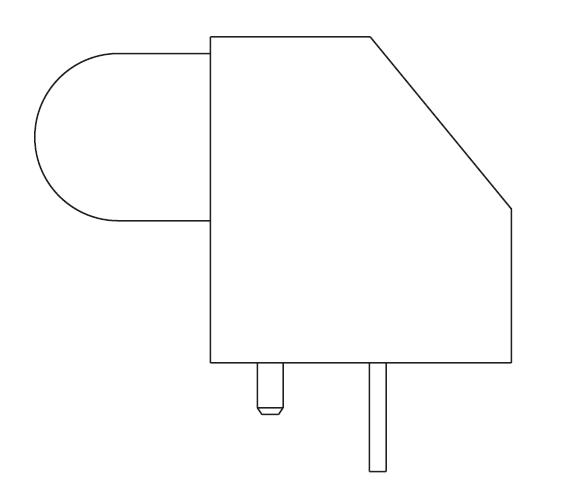

product image

5338H1 Picture
See larger image
SeekIC No. : 0031062 Detail

5338H1: LED Circuit Board Indicators RED DIFFUSED RIGHT ANGLE

5338H1 Data Sheet

floor Price/Ceiling Price

US $ .28~.5 / Piece | Get Latest Price
Part Number:
5338H1
Mfg:
Chicago Miniature
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~500
  • Unit Price
  • $.5
  • $.39
  • $.32
  • $.28
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Illumination Color : Red Lens Color/Style : Tinted
Wavelength : 650 nm Mounting Type : Through Hole
Packaging : Bulk

Description

LED Size :
Luminous Intensity :
Viewing Angle :
Mounting Type : Through Hole
Packaging : Bulk
Lens Color/Style : Tinted
Illumination Color : Red
Wavelength : 650 nm


Pinout




Specifications

Part Number: 5338H1
Serial Number: 5338H
Emitted color: Red
Lens color: Red
Lum in min (mcd): 2.2
Lum in typ (mcd): 6.3
Rated current (mA): 10.0
Cont forward current max: 60.0
Fwd volts type: 2.0
Forward volt max.: 3.0
Reverse breakdown V: 3
Viewing angle (°): 50
Peak wave length (mA): 650
Housing type: UL94V-0
RoHS Status: Yes


Description

CML LED assemblies 5338H1 are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.
