533622B02552

BOARD LEVEL HEAT SINK

product image

533622B02552 Picture
See larger image
SeekIC No. : 004232795 Detail

533622B02552: BOARD LEVEL HEAT SINK

533622B02552 Data Sheet

floor Price/Ceiling Price

US $ 1.42~1.42 / Piece | Get Latest Price
Part Number:
533622B02552
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~600
  • Unit Price
  • $1.42
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

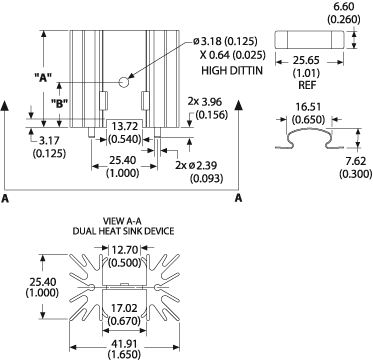

Connection Diagram


Specifications

Part # Description Finish Board Mounting
533622B02552 Extruded heat sink with large radial fins and solderable pins and device clip Black Anodize N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 3.80

Thermal resistance value of 533622B02552 is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information533622B02552
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip and PC Pin
Height2.5" (63.5mm)
MaterialAluminum
Package CooledTO-220
Power Dissipation @ Temperature Rise16W @ 50°C
Thermal Resistance @ Forced Air Flow1°C/W @ 700 LFM
Outline41.91mm x 25.40mm
Thermal Resistance @ Natural3.8°C/W
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 533622B02552
533622B02552
