533301B02551G

BOARD LEVEL HEAT SINK

product image

533301B02551G Picture
See larger image
SeekIC No. : 004232787 Detail

533301B02551G: BOARD LEVEL HEAT SINK

533301B02551G Data Sheet

floor Price/Ceiling Price

US $ 1.09~1.09 / Piece | Get Latest Price
Part Number:
533301B02551G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~2500
  • Unit Price
  • $1.09
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

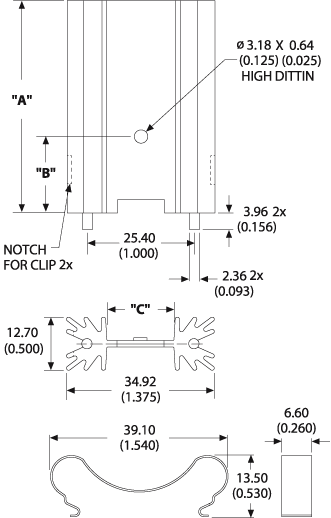

Connection Diagram


Specifications

Part # Description Finish Board Mounting
533301B02551G Extruded heat sink with radial fins and solderable pins and device clip Black Anodize N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 8.00

Thermal resistance value of 533301B02551G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information533301B02551G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip and PC Pin
Height2.5" (63.5mm)
MaterialAluminum
Package CooledTO-220
Power Dissipation @ Temperature Rise8W @ 60°C
Thermal Resistance @ Forced Air Flow2°C/W @ 800 LFM
Outline34.92mm x 12.70mm
Thermal Resistance @ Natural8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 533301B02551G
