SeekIC No. : 002534135 Detail

532602B02500G: Heat Sinks TO-220/TO-247 VERT

532602B02500G Data Sheet

US $ .79~.79 / Piece | Get Latest Price

Part Number:: 532602B02500G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~2520

Unit Price
$.79

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

532600-4 evaluate
US $3.59 - 3.97 / Piece

Standard Card Edge Connectors CONN SEC II 31 POS 100 C/L R/A
532602B00000 evaluate
US $2.15 - 2.39 / Piece

Heat Sinks HIGH PWR EXTR RADIAL 38.1mm VERT BLK
532602B00000G evaluate
PinoutSpecifications Part# Description Finish Board Mounting 532602B00000G Hig...

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Aluminum	Fin Style :	Radial
Thermal Resistance :	5.5 C / W	Length :	12.7 mm
Width :	41.91 mm	Height :	38.1 mm
Designed for :	TO-220

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Designed for : TO-220
Height : 38.1 mm
Thermal Resistance : 5.5 C / W
Length : 12.7 mm
Fin Style : Radial
Width : 41.91 mm

Pinout

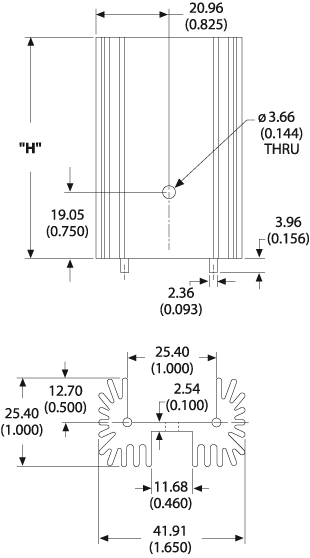

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
532602B02500G	High power extruded Heatsink with large radial fins and straight pins	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

5.50

Thermal resistance value of 532602B02500G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	532602B02500G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	1.5" (38.1mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	6W @ 40°C
Thermal Resistance @ Forced Air Flow	2°C/W @ 400 LFM
Outline	41.91mm x 25.40mm
Thermal Resistance @ Natural	5.5°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	532602B02500G 532602B02500G
